NOTES:

Part #	Number on image	Usage Notes
405-000-027	23	Used as required. Used as required.
405-000-028	24	Used as required. Used as required.
405-000-029	25	Used as required. Used as required.
405-000-030	26	Used as required. Used as required.

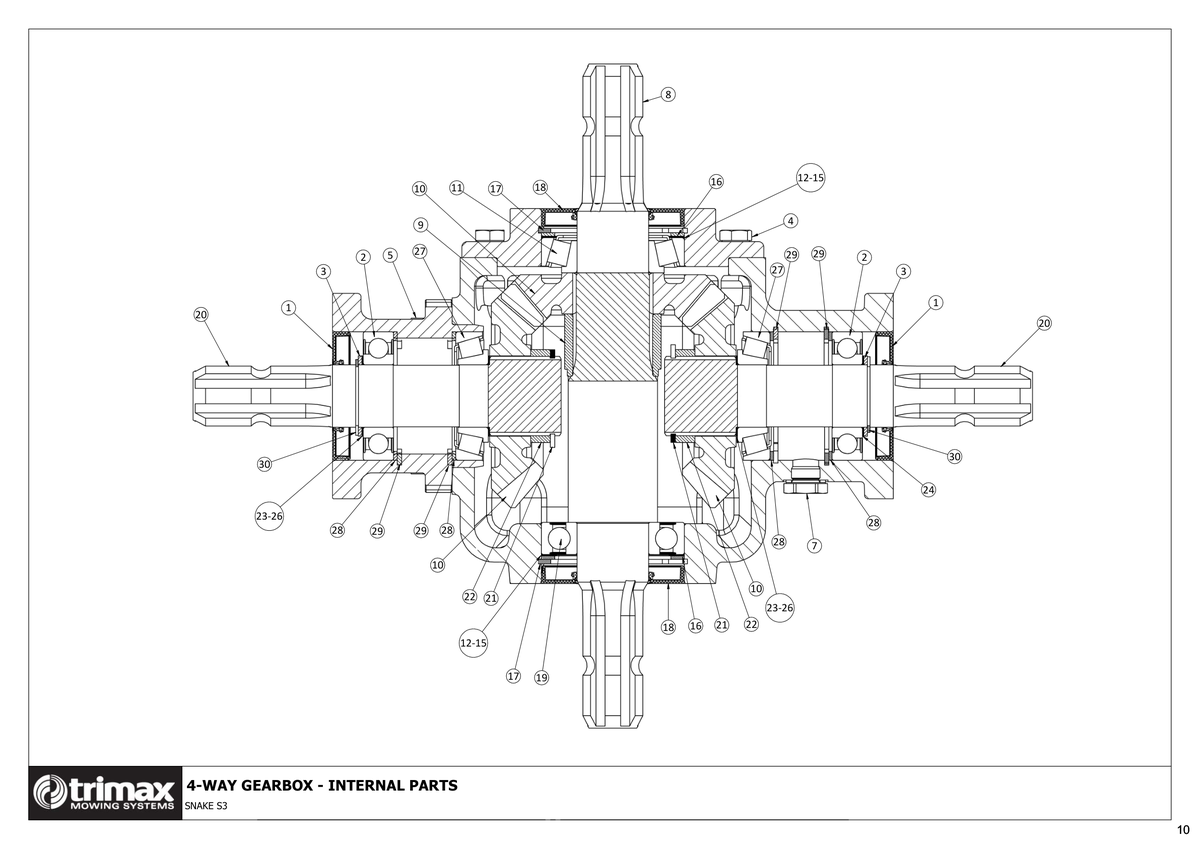

780 - Snake S3 - Chassis 4 Way Gearbox

Grouped product items
No.	Product Name	Price
1	Oil Seal 422-380-300 More Info >	US$38.55
3	Key - 10x8x56 405-000-024 More Info >	US$2.13
4	Bolt 301-210-253 More Info >	US$0.47
5	Cap Screw 303-208-255 More Info >	US$0.82
6	Breather 405-000-019 More Info >	US$9.37
7	Plug - Gearbox 405-000-023 More Info >	US$40.52
11	Bearing 401-022-510 More Info >	US$96.37
18	Oil Seal 422-381-000 More Info >	US$29.31
19	Bearing 401-022-400 More Info >	US$76.84
22	Spacer - Short - Snake 4 way gearbox 405-000-035 More Info >	Price on Request
23	Shim - Small - 0.25mm Benzi R140 & R240 i See notes section for usage notes on this part 405-000-027 More Info >	Price on Request
24	Shim - Small - 0.50mm Benzi R140 & R240 i See notes section for usage notes on this part 405-000-028 More Info >	Price on Request
25	Shim - Small - 0.20mm Benzi R140 & R240 i See notes section for usage notes on this part 405-000-029 More Info >	Price on Request
26	Shim - Small - 0.35mm Benzi R140 & R240 i See notes section for usage notes on this part 405-000-030 More Info >	Price on Request
27	Taper Bearing - Small Benzi 4-Way R140 401-000-031 More Info >	Price on Request
28	Washer - Medium - Snake 4 way gearbox 405-000-025 More Info >	Price on Request
30	Circlip - External - Small - Snake gearbox 204-000-003 More Info >	Price on Request
