NOTES:

Part # Number on image Usage Notes
403-000-091 24
  • Pulley and 2x Bearing 1x Circlip 1x Washer
403-000-192 27
  • Idler Arm and 2x Bearing 1x Circlip 1x Washer
403-000-167 38
  • Kit consists of 2x Bearing 1x Circlip 1x Washer

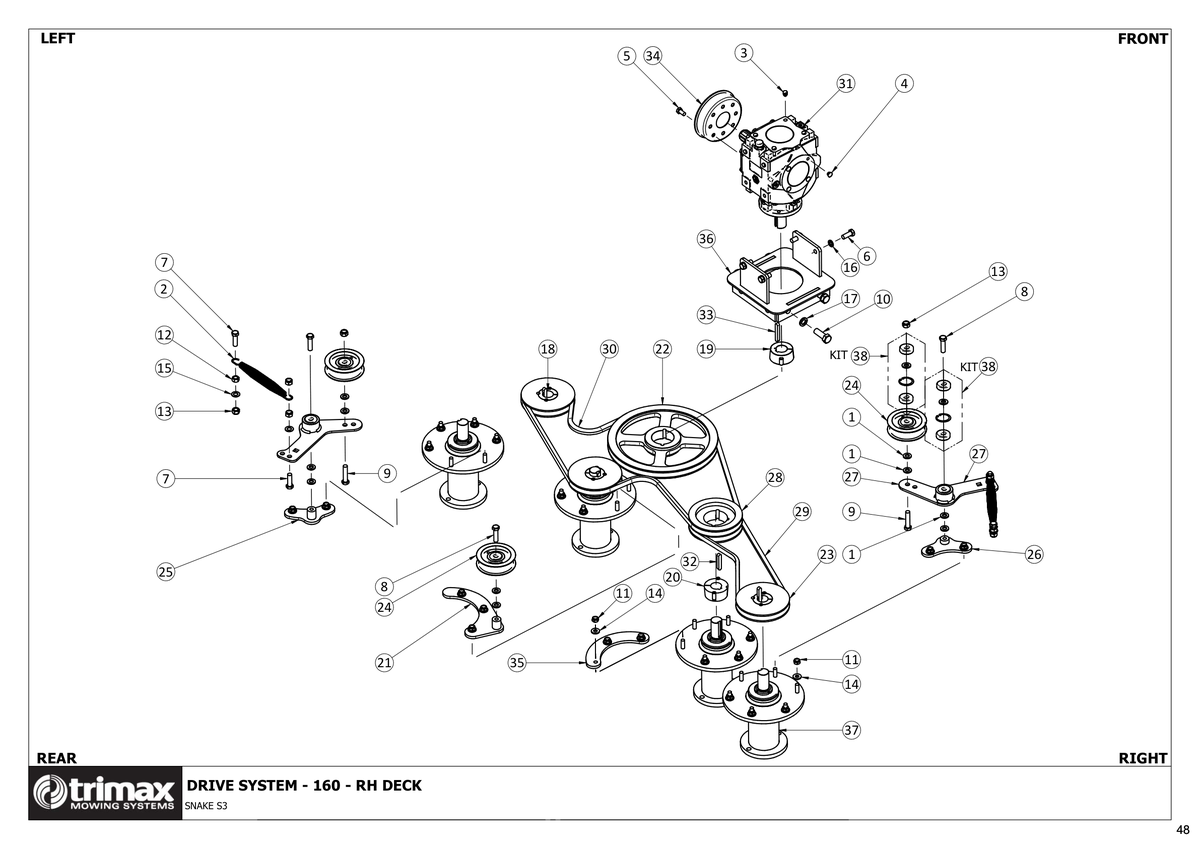

780 - Snake S3 - Drive System 160 RH

Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - [207-000-009] Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - 207-000-009
US$6.21
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Blanking Plug [209-900-014] Blanking Plug 209-900-014
US$0.26
5 Bolt [301-210-203] Bolt 301-210-203
US$0.44
6 Bolt [301-212-303] Bolt 301-212-303
US$3.13
7 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
8 Bolt [301-212-453] Bolt 301-212-453
US$3.72
9 Bolt [301-212-553] Bolt 301-212-553
US$1.07
10 Bolt [301-216-453] Bolt 301-216-453
US$6.85
11 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
12 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
13 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
14 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
15 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
16 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
17 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
18 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
19 Bush [402-000-083] Bush 402-000-083
US$23.97
20 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
21 Idler Tower [403-000-076] Idler Tower 403-000-076
US$46.21
22 Pulley [403-000-081] Pulley 403-000-081
US$203.41
23 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
24 Pulley Assembly [403-000-091] Pulley Assembly i See notes section for usage notes on this part 403-000-091
US$84.38
25 Idler Base Weldment - Short [403-000-110] Idler Base Weldment - Short 403-000-110
US$74.97
26 Idler Base Weldment - Very Short [403-000-111] Idler Base Weldment - Very Short 403-000-111
US$85.90
27 Idler Arm - Assembly - Snake S3 [403-000-192] Idler Arm - Assembly - Snake S3 i See notes section for usage notes on this part 403-000-192
US$95.60
28 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
29 Vee Belt [404-040-495] Vee Belt 404-040-495
US$37.19
30 Vee Belt [404-040-962] Vee Belt 404-040-962
US$68.95
31 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
32 Key - 10x8x56 [405-000-024] Key - 10x8x56 405-000-024
US$2.13
33 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
US$10.29
34 Mounting Plate [410-000-258] Mounting Plate 410-000-258
US$46.86
35 Plate [417-001-002] Plate 417-001-002
US$30.89
36 Gearbox Mount Weldment [417-001-364] Gearbox Mount Weldment 417-001-364
US$210.93
37 Spindle Assembly - With Keyway - Snake S3 Painted [504-000-181] Spindle Assembly - With Keyway - Snake S3 Painted 504-000-181
US$557.38
38 Kit - Idler Repair [403-000-167] Kit - Idler Repair i See notes section for usage notes on this part 403-000-167
US$42.71
