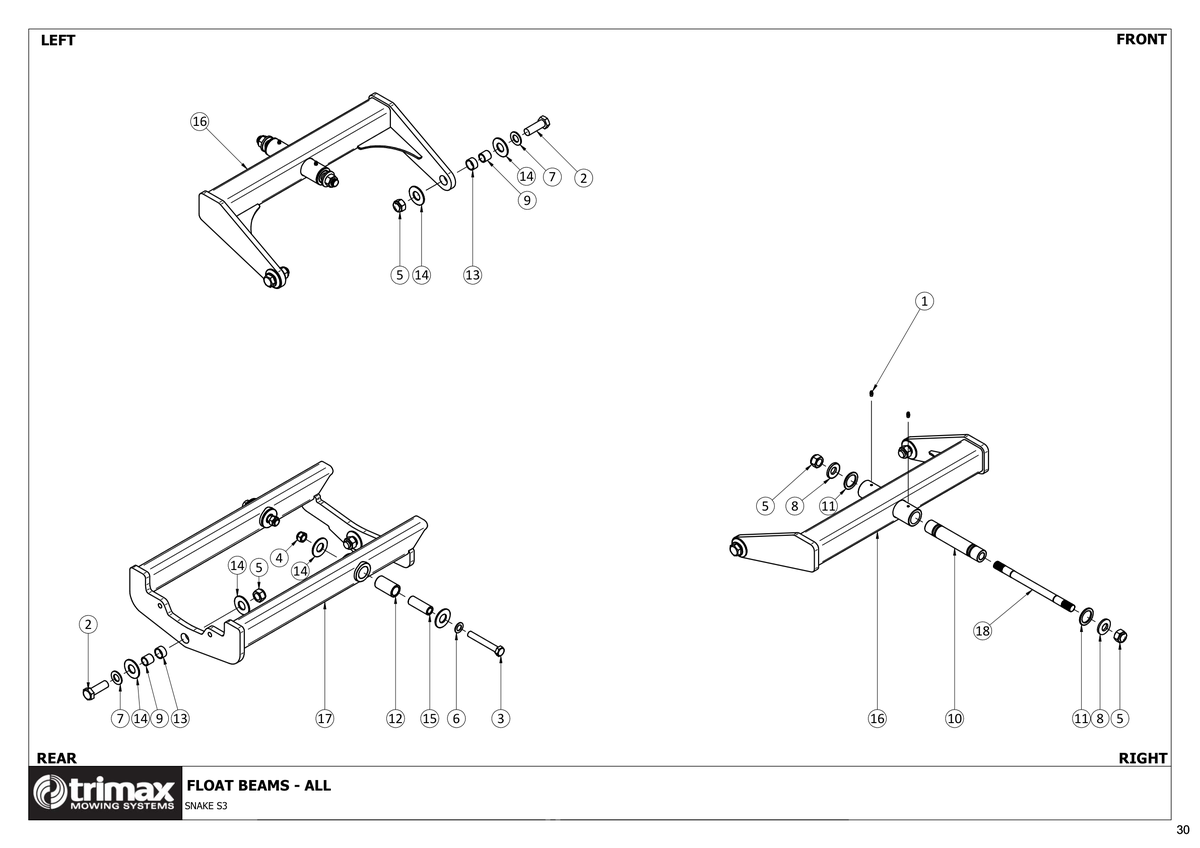

780 - Snake S3 - Float Beam Assembly All

Snake S3 320, Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - 1/4" Short [208-442-600] Grease Nipple - 1/4" Short 208-442-600
US$3.72
2 Bolt [301-220-603] Bolt 301-220-603
US$4.56
3 Bolt [301-616-113] Bolt 301-616-113
US$7.89
4 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
5 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
6 Washer - Flat [308-160-013] Washer - Flat 308-160-013
US$0.61
7 Washer - Flat [308-200-013] Washer - Flat 308-200-013
US$0.25
8 Washer - Conical Spring M20 Zp [308-200-093] Washer - Conical Spring M20 Zp 308-200-093
US$6.68
9 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
US$13.03
10 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
US$148.53
12 Bush [402-000-079] Bush 402-000-079
US$38.27
13 Bush - Composite Pivot Bush - 25mm [402-000-093] Bush - Composite Pivot Bush - 25mm 402-000-093
US$29.87
14 Thrust Washer [402-000-105] Thrust Washer 402-000-105
US$14.84
15 Sleeve [402-840-580] Sleeve 402-840-580
US$25.83
16 Side Float Beam Weldment - Snake S2 [418-000-688] Side Float Beam Weldment - Snake S2 418-000-688
US$745.40
17 Float Beam Weldment - Rear - Powder Coated Snake S3 [418-001-055] Float Beam Weldment - Rear - Powder Coated Snake S3 418-001-055
Price on Request
18 Pin - Pitch Pivot [419-000-069] Pin - Pitch Pivot 419-000-069
US$67.44
