NOTES:

Part # Number on image Usage Notes
409-000-061 11
  • For Customers with MLS The Rear Hose Is Longer Use P/N 409-000-141
  • For Customers with MLS The Rear Hose Is Longer Use P/N 409-000-141

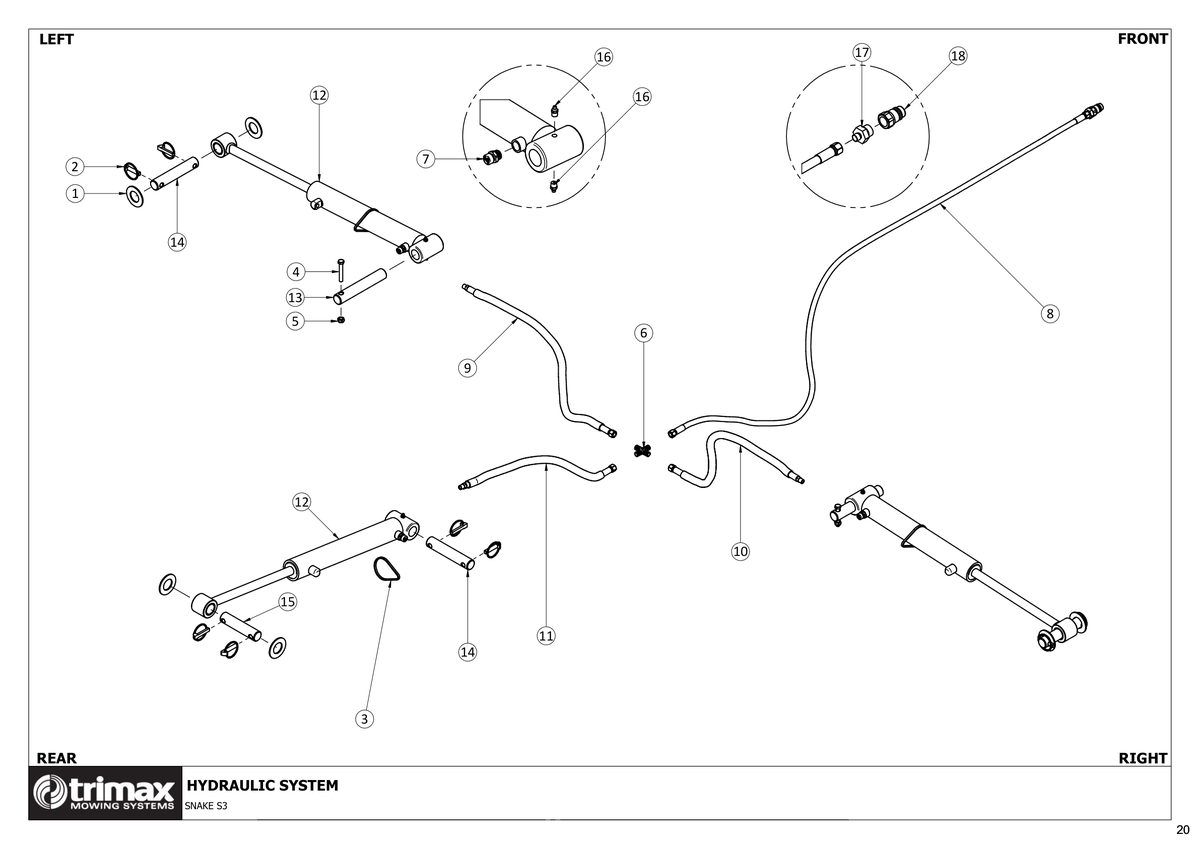

780 - Snake S3 - Hydraulic System

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Flat [108-203-613] Washer - Flat 108-203-613
US$2.07
2 Linch Pin [203-300-700] Linch Pin 203-300-700
US$2.23
3 Cable tie [210-900-011] Cable tie 210-900-011
US$0.77
4 Bolt [301-210-653] Bolt 301-210-653
Price on Request
5 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
6 Cross - Hydraulic [408-000-053] Cross - Hydraulic 408-000-053
US$47.83
7 Breather - Capped 3/8" BSP [408-000-083] Breather - Capped 3/8" BSP 408-000-083
US$14.18
8 Hose Assembly - Fron [409-000-059] Hose Assembly - Fron 409-000-059
US$83.17
9 Hose Assembly [409-000-060] Hose Assembly 409-000-060
US$46.30
11 Hose Assembly - Rear [409-000-061] Hose Assembly - Rear i See notes section for usage notes on this part 409-000-061
US$21.00
12 Hydraulic Cylinder - Ø2" x 335 Stroke - Snake [409-000-086] Hydraulic Cylinder - Ø2" x 335 Stroke - Snake 409-000-086
US$853.40
13 Pin - Hydraulic Cylinder [419-000-034] Pin - Hydraulic Cylinder 419-000-034
US$20.52
14 Pin - Hydraulic Cylinder [419-000-035] Pin - Hydraulic Cylinder 419-000-035
US$21.92
15 Pin - Hydraulic Cylinder [419-000-039] Pin - Hydraulic Cylinder 419-000-039
US$48.16
16 Grease Nipple [208-442-550] Grease Nipple 208-442-550
US$2.45
17 Nipple [408-448-280] Nipple 408-448-280
US$19.01
18 Coupling [408-447-580] Coupling 408-447-580
US$45.61
