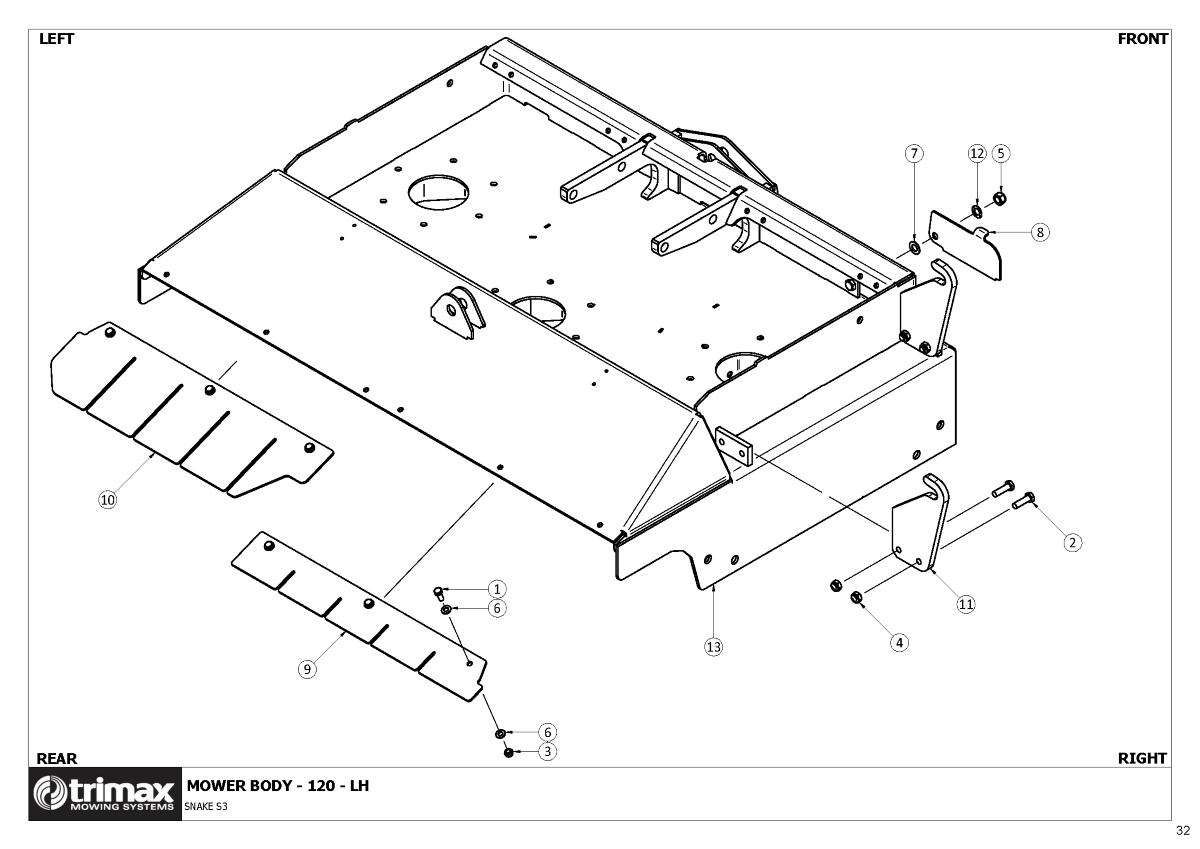

780 - Snake S3 - Mower Body 120 LH

Snake S3 320

Grouped product items
No. Image Product Name Price Quantity
1 Bolt [301-208-203] Bolt 301-208-203
US$1.05
2 Bolt [301-210-353] Bolt 301-210-353
US$0.68
3 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
4 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
5 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
6 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
7 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
8 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
US$24.04
9 Rear Flap - Side Deck Inner - Powder Coated - Snake S3 [410-000-565] Rear Flap - Side Deck Inner - Powder Coated - Snake S3 410-000-565
US$69.43
10 Rear Flap - Side Deck Outer - Powder Coated [410-000-610] Rear Flap - Side Deck Outer - Powder Coated 410-000-610
US$56.60
11 Hook [417-001-353] Hook 417-001-353
US$39.81
12 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
13 Body Weldment - Snake S3 120 LH - Powder Coated [502-000-298] Body Weldment - Snake S3 120 LH - Powder Coated 502-000-298
Price on Request
