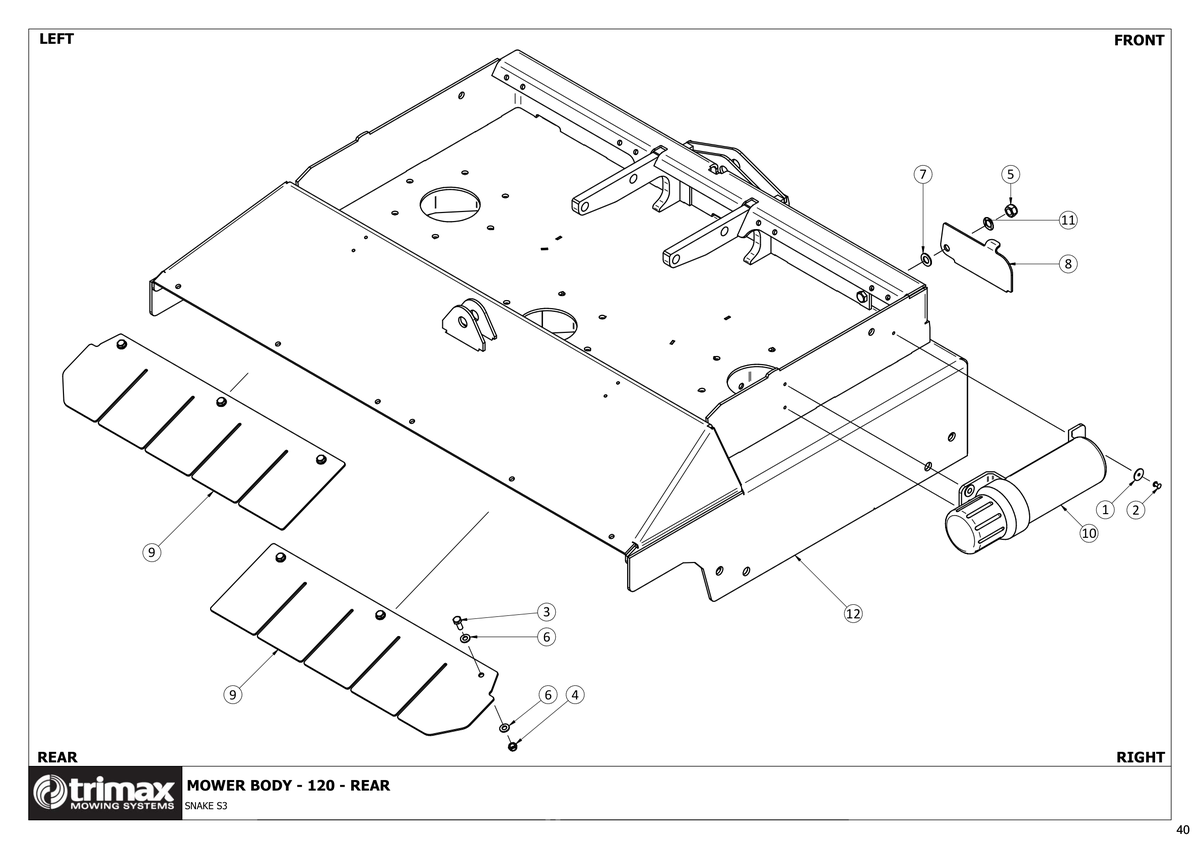

780 - Snake S3 - Mower Body 120 Rear

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
3 Bolt [301-208-203] Bolt 301-208-203
US$1.05
4 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
5 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
6 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
7 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
8 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
US$24.04
9 Rear Flap - Outer - Procut S5 [410-000-463] Rear Flap - Outer - Procut S5 410-000-463
US$34.61
10 Operator Manual Tube - Screw Cap [450-000-073] Operator Manual Tube - Screw Cap 450-000-073
US$33.38
11 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
12 Body Weldment - Snake S3 Rear - Powder Coated [502-000-297] Body Weldment - Snake S3 Rear - Powder Coated 502-000-297
Price on Request
