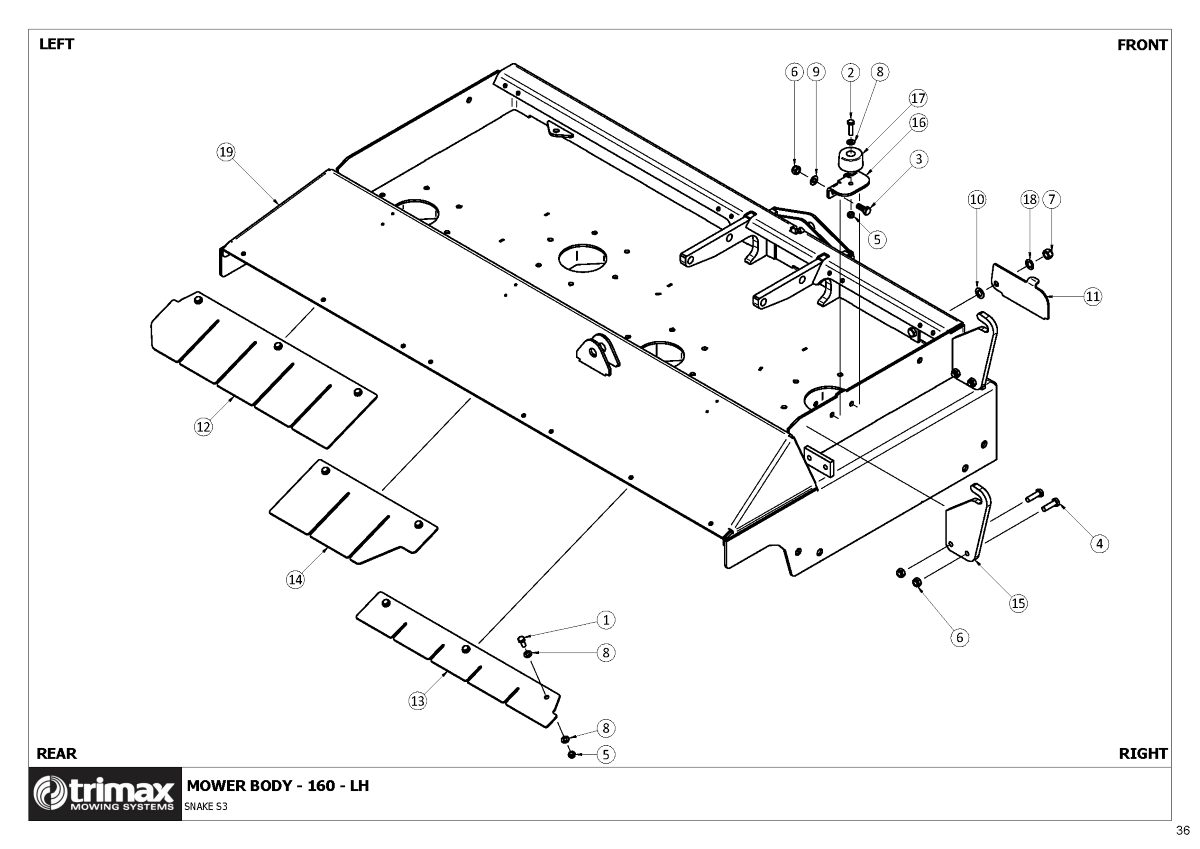

780 - Snake S3 - Mower Body 160 LH

Grouped product items
No. Image Product Name Price Quantity
1 Bolt [301-208-203] Bolt 301-208-203
US$1.05
2 Bolt [301-208-303] Bolt 301-208-303
US$0.29
3 Bolt [301-210-253] Bolt 301-210-253
US$0.47
4 Bolt [301-210-353] Bolt 301-210-353
US$0.68
5 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
6 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
7 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
8 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
9 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
10 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
11 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
US$24.04
12 Rear Flap - Outer - Procut S5 [410-000-463] Rear Flap - Outer - Procut S5 410-000-463
US$34.61
13 Rear Flap - Side Deck Inner - Powder Coated - Snake S3 [410-000-565] Rear Flap - Side Deck Inner - Powder Coated - Snake S3 410-000-565
US$69.43
14 Rear Flap - Mid - 400 - Powder Coated - Snake S3 [410-000-566] Rear Flap - Mid - 400 - Powder Coated - Snake S3 410-000-566
Price on Request
15 Hook [417-001-353] Hook 417-001-353
US$39.81
16 Folding [417-001-363] Folding 417-001-363
US$14.44
17 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
18 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
19 Body Weldment - Snake S3 160 LH - Powder Coated [502-000-300] Body Weldment - Snake S3 160 LH - Powder Coated 502-000-300
Price on Request
