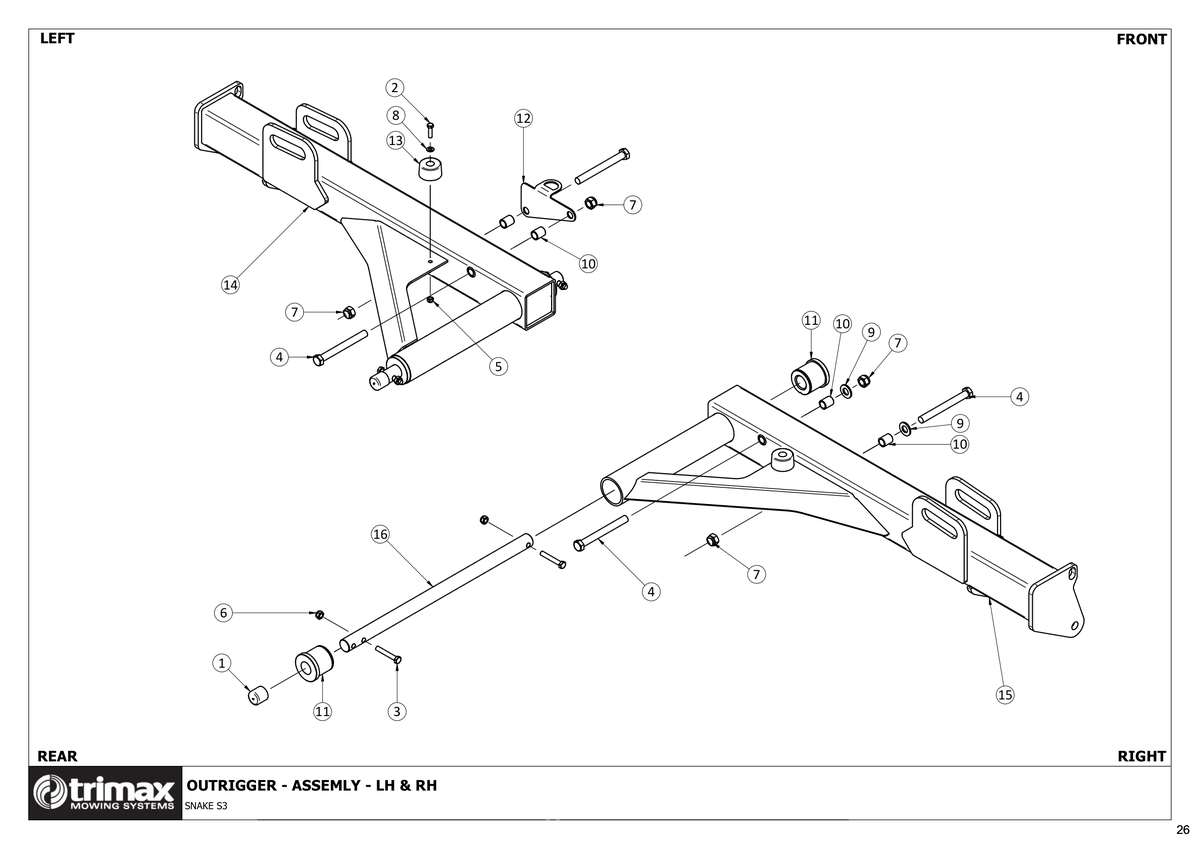

780 - Snake S3 - Outrigger Assembly LH & RH

Grouped product items
No. Image Product Name Price Quantity
1 Cap - Hinge Pin Ø 1 ¼" [209-000-009] Cap - Hinge Pin Ø 1 ¼" 209-000-009
US$7.15
2 Bolt [301-208-303] Bolt 301-208-303
US$0.29
3 Bolt [301-210-653] Bolt 301-210-653
Price on Request
4 Bolt [301-616-153] Bolt 301-616-153
US$13.69
5 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
6 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
7 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
8 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
9 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
10 Bush - Lock Inner [402-000-076] Bush - Lock Inner 402-000-076
US$5.67
11 Hinge Bush - Outrigger [402-000-149] Hinge Bush - Outrigger 402-000-149
US$50.86
12 Attachment Bracket [418-000-535] Attachment Bracket 418-000-535
US$22.06
13 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
14 Outrigger - LH - Inc. Bushes - Snake S3 [510-000-096] Outrigger - LH - Inc. Bushes - Snake S3 510-000-096
US$627.04
15 Outrigger - RH - Inc. Bushes - Snake S3 [510-000-097] Outrigger - RH - Inc. Bushes - Snake S3 510-000-097
US$627.04
16 Hinge Pin - Outrigger Snake S3 [419-000-074] Hinge Pin - Outrigger Snake S3 419-000-074
US$69.94
