NOTES:

Part # Number on image Usage Notes
404-000-057 15
  • OPTION – Roller Scraper optional add-on
412-000-803 21
  • OPTION – Anti-Bounce Skid optional add-on

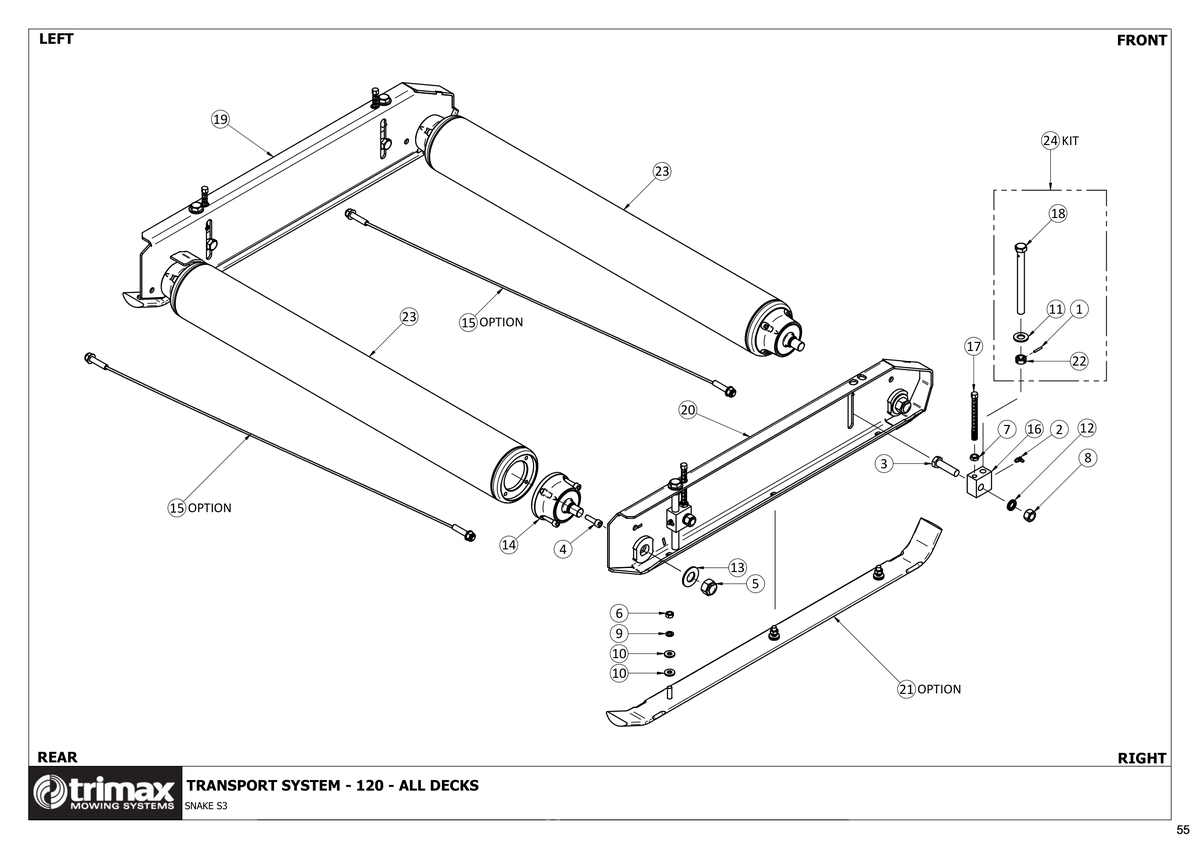

780 - Snake S3 - Transport System 120

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin 202-447-980
US$2.10
2 Grease Nipple [208-442-650] Grease Nipple 208-442-650
US$4.76
3 Bolt [301-216-603] Bolt 301-216-603
US$1.74
4 Cap Screw [303-210-353] Cap Screw 303-210-353
US$1.49
5 Nut Nyloc [307-122-053] Nut Nyloc 307-122-053
US$8.98
6 Nut - Plain [307-210-013] Nut - Plain 307-210-013
US$0.60
7 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
8 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
9 Washer - Spring [308-100-043] Washer - Spring 308-100-043
US$0.29
10 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
11 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
12 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
US$5.62
13 Washer - Heavy Flat M24 ZP (Ø25mm ID) [308-240-063] Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063
US$1.31
14 Bearing Assembly - Titan [401-000-035] Bearing Assembly - Titan 401-000-035
US$181.58
15 Scraper [404-000-057] Scraper i See notes section for usage notes on this part 404-000-057
US$82.00
16 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
US$58.77
17 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
US$19.91
18 Set Screw [412-000-609] Set Screw 412-000-609
US$35.70
19 Side Channel Weldment - Titan LH Powder Coated [412-000-790] Side Channel Weldment - Titan LH Powder Coated 412-000-790
US$442.67
20 Side Channel Weldment - Titan RH Powder Coated [412-000-791] Side Channel Weldment - Titan RH Powder Coated 412-000-791
US$442.67
21 Skid - Anti-Bounce Inc. Bolts - Powder Coated - Snake S3 [412-000-803] Skid - Anti-Bounce Inc. Bolts - Powder Coated - Snake S3 i See notes section for usage notes on this part 412-000-803
Price on Request
22 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
US$22.17
23 Roller Weldment - Snake S3 120 Titan Powder Coated [414-000-191] Roller Weldment - Snake S3 120 Titan Powder Coated 414-000-191
US$425.98
24 Kit - Height Adjuster Rod and Collar [412-000-649] Kit - Height Adjuster Rod and Collar 412-000-649
US$54.64
