NOTES:

Part # Number on image Usage Notes
418-001-274 32
  • Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.
418-001-275 33
  • Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.
418-001-280 34
  • Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.

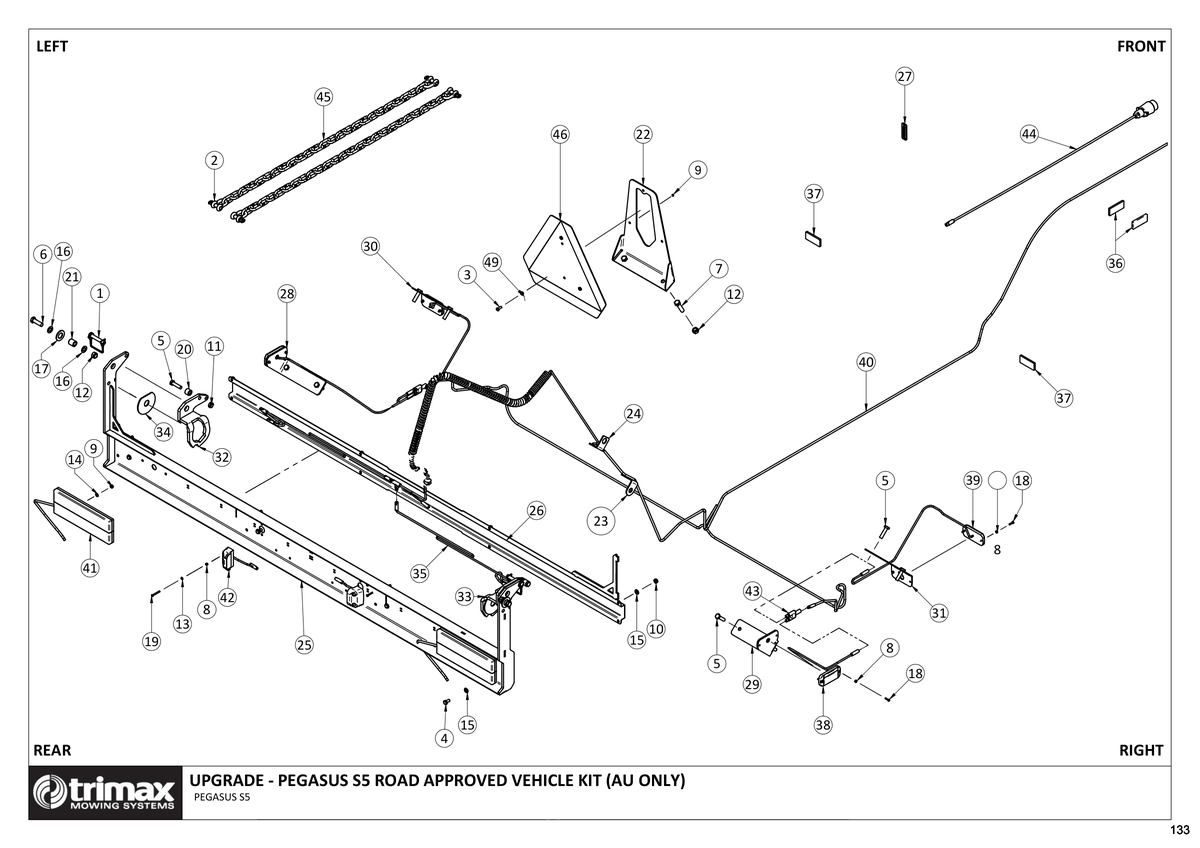

781 - Pegasus S5 493 - Road Approved Vehicle Kit (AU Only) - Option

Pegasus S5 493

Grouped product items
No. Image Product Name Price Quantity
1 Shaft Locking Pin - 11mm X 54mm [203-000-001] Shaft Locking Pin - 11mm X 54mm 203-000-001
US$5.18
3 Bolt - Hex Head - M6 x 16 - Trimax Specification [301-206-163] Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163
US$0.35
4 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
5 Bolt - Hex Head - M10 x 40 - Trimax Specification [301-210-403] Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403
US$0.72
6 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
7 Bolt - Hex Head M12 x 50 - Trimax Specification - [301-212-503] Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503
US$3.87
8 Nut - Nyloc [307-204-053] Nut - Nyloc 307-204-053
US$0.09
9 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
10 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
11 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
12 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
13 Washer - Flat [308-040-013] Washer - Flat 308-040-013
US$0.38
14 Washer - Flat [308-060-013] Washer - Flat 308-060-013
US$0.05
15 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
16 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
17 Washer - Flat [308-200-013] Washer - Flat 308-200-013
US$0.25
18 Screw [315-204-166] Screw 315-204-166
Price on Request
19 Screw [315-204-356] Screw 315-204-356
US$0.47
22 Mount Plate - Slow Moving Triangle [418-000-916] Mount Plate - Slow Moving Triangle 418-000-916
US$68.53
32 Light Bar Support Weldment LH [418-001-274] Light Bar Support Weldment LH i See notes section for usage notes on this part 418-001-274
Price on Request
33 Light Bar Support Weldment RH [418-001-275] Light Bar Support Weldment RH i See notes section for usage notes on this part 418-001-275
Price on Request
34 Washer Light Bar Support [418-001-280] Washer Light Bar Support i See notes section for usage notes on this part 418-001-280
Price on Request
35 Tail Light Cable - 1.3M - 4C130C [421-000-064] Tail Light Cable - 1.3M - 4C130C 421-000-064
US$27.58
41 Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug [421-000-393] Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug 421-000-393
US$207.65
42 Light - Number Plate [421-000-394] Light - Number Plate 421-000-394
Price on Request
43 2 Core Splitter Plug - 2 Way [421-000-450] 2 Core Splitter Plug - 2 Way 421-000-450
Price on Request
44 Trailer Plug inc. Cable 1m /w Metal Plug [421-000-586] Trailer Plug inc. Cable 1m /w Metal Plug 421-000-586
US$182.86
46 Sign - Safety Triangle [450-000-124] Sign - Safety Triangle 450-000-124
US$149.74
49 Washer - Fender [308-060-076] Washer - Fender 308-060-076
Price on Request
