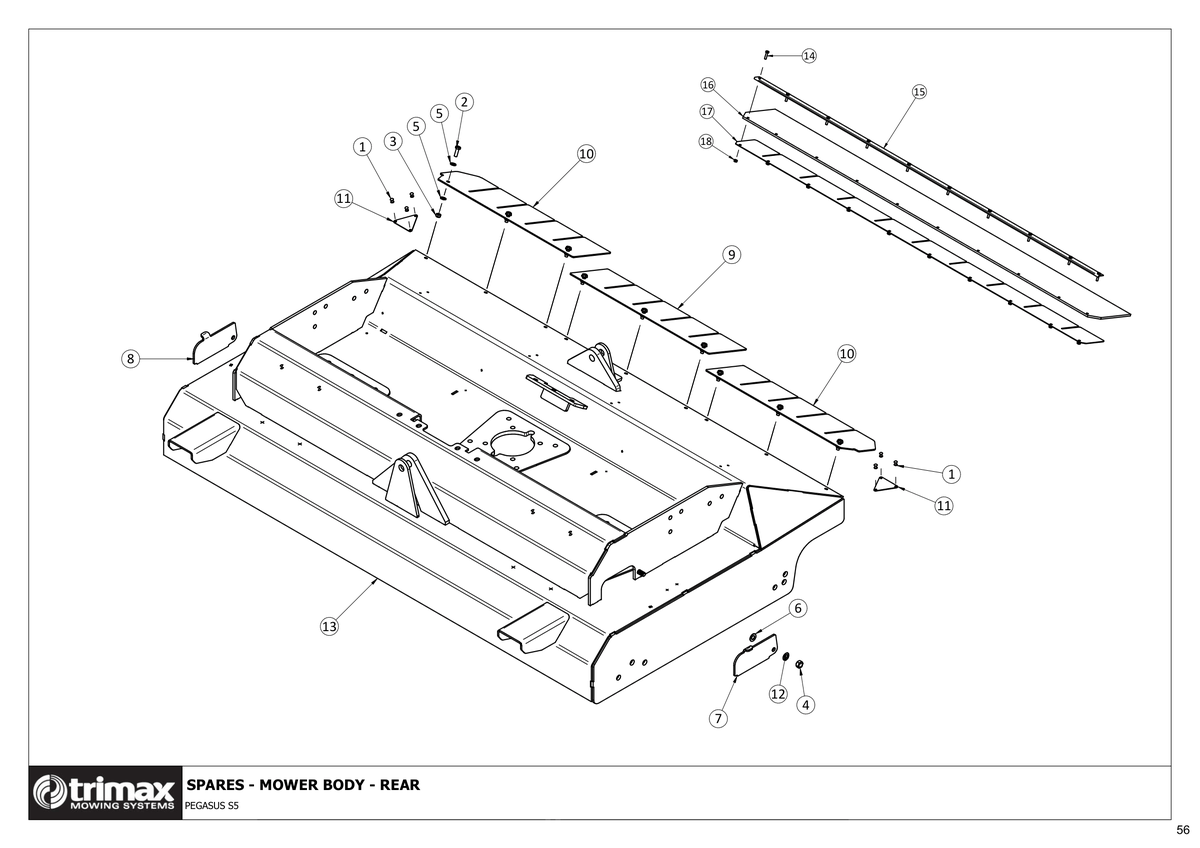

781 - Pegasus S5 722 - Mower Body Assembly 178 Rear

Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
2 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
US$0.89
3 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
4 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
5 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
6 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
7 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
US$24.04
8 Wash Panel - LH [410-000-135] Wash Panel - LH 410-000-135
US$24.04
9 Rear Flap - Inner - Procut S5 [410-000-461] Rear Flap - Inner - Procut S5 410-000-461
US$93.51
10 Rear Flap - Outer - Procut S5 [410-000-463] Rear Flap - Outer - Procut S5 410-000-463
US$34.61
11 Cap Plate [417-001-024] Cap Plate 417-001-024
US$2.39
12 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
14 Bolt - Hex Head - M6 x 25 - Trimax Specification [301-206-253] Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253
US$0.11
15 Clamp Strip - Safety Flap 178 [410-841-200] Clamp Strip - Safety Flap 178 410-841-200
US$82.39
16 Safety Flap - Deck - Rear 178 [410-841-120] Safety Flap - Deck - Rear 178 410-841-120
US$172.20
17 Anti-Droop Strip - Safety Flap 178 [410-000-298] Anti-Droop Strip - Safety Flap 178 410-000-298
US$78.07
18 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
