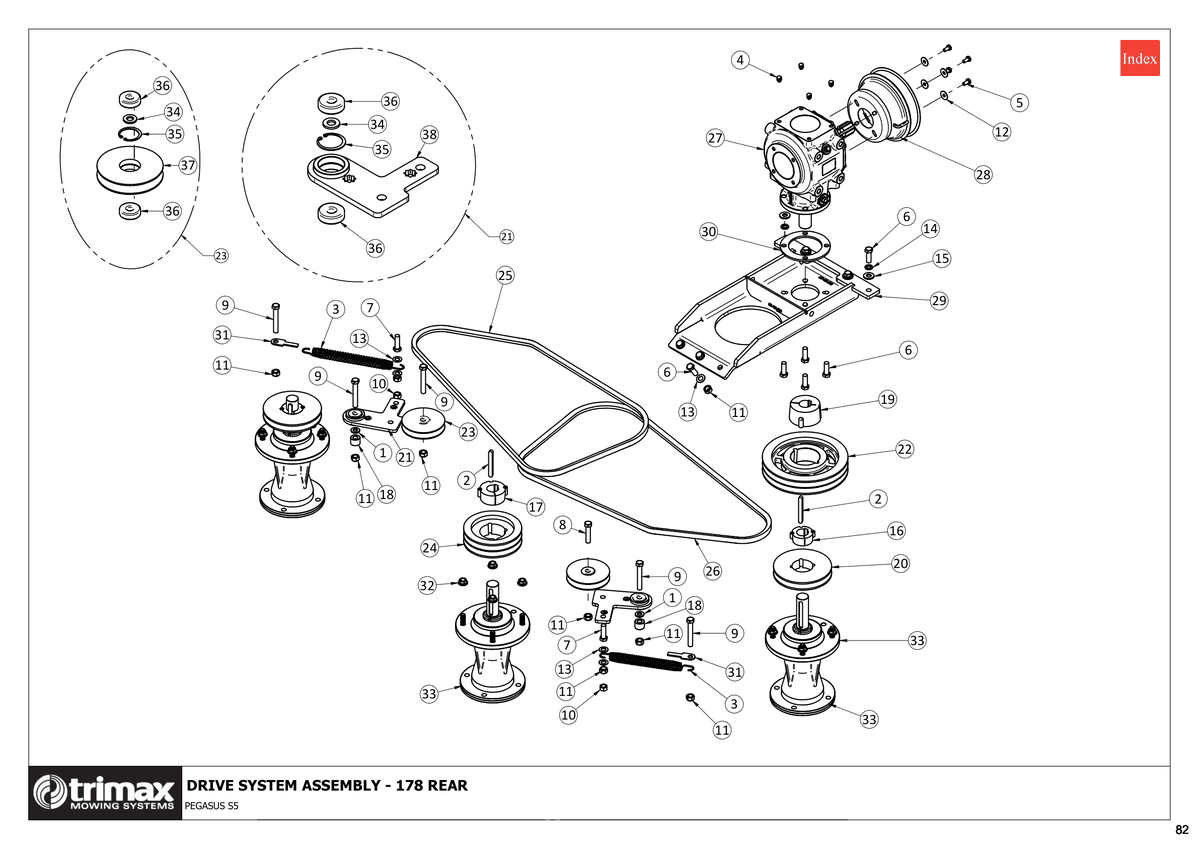

781 - Pegasus S5 - Drive System 178 Rear

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Key - 10 x 8 x 85 DIN6885 Form A [205-000-003] Key - 10 x 8 x 85 DIN6885 Form A 205-000-003
US$7.14
3 Spring - Tension [207-000-009] Spring - Tension 207-000-009
US$6.21
4 Blanking Plug [209-900-012] Blanking Plug 209-900-012
US$0.35
5 Bolt [301-208-163] Bolt 301-208-163
US$1.05
6 Bolt [301-212-353] Bolt 301-212-353
US$2.98
7 Bolt [301-212-403] Bolt 301-212-403
US$8.93
8 Bolt [301-212-553] Bolt 301-212-553
US$1.07
9 Bolt [301-212-803] Bolt 301-212-803
US$7.12
10 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
11 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
12 Washer - Fender - M8 [308-080-073] Washer - Fender - M8 308-080-073
Price on Request
13 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
14 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
15 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
16 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
17 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
18 Idler Arm Spacer Bush - 19mm [402-000-134] Idler Arm Spacer Bush - 19mm 402-000-134
US$15.18
19 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
US$57.31
20 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
21 Idler Arm - Assembly [403-000-123] Idler Arm - Assembly 403-000-123
US$116.46
22 Pulley - Taper Lock Ø224 SPB x 2 [403-000-130] Pulley - Taper Lock Ø224 SPB x 2 403-000-130
US$87.83
23 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
24 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
25 Vee Belt [404-040-750] Vee Belt 404-040-750
US$30.38
27 Gearbox [405-200-720] Gearbox 405-200-720
US$1,405.69
28 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
US$25.22
29 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
30 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
31 Idler Arm - Spring Retainer - ZP [417-001-410] Idler Arm - Spring Retainer - ZP 417-001-410
US$10.71
32 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
33 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway 504-000-133
US$1,058.76
35 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
36 Bearing [401-021-900] Bearing 401-021-900
US$18.52
37 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
38 Idler Arm - Weldment - ZP [403-000-122] Idler Arm - Weldment - ZP 403-000-122
US$109.52
