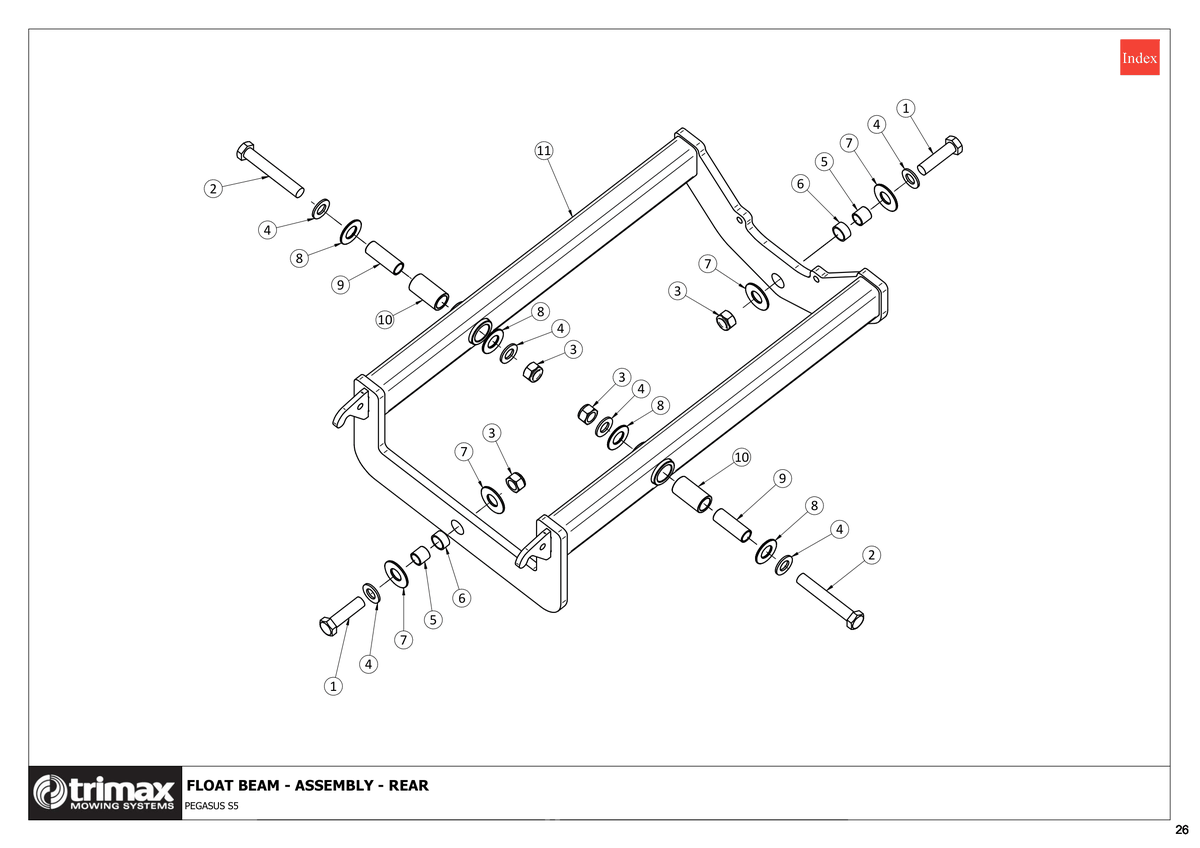

781 - Pegasus S5 - Float Beam Rear

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Bolt [301-220-753] Bolt 301-220-753
US$13.55
2 Bolt [301-620-133] Bolt 301-620-133
US$12.38
3 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
US$1.49
4 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
US$1.05
5 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
US$13.03
6 Bush - Composite [402-000-093] Bush - Composite 402-000-093
US$29.87
7 Thrust Washer [402-000-105] Thrust Washer 402-000-105
US$14.84
8 Washer - Pitch Pivot Rear [402-840-570] Washer - Pitch Pivot Rear 402-840-570
US$14.64
9 Sleeve - Pitch Pivot Rear [402-840-581] Sleeve - Pitch Pivot Rear 402-840-581
US$26.36
10 Bush - Pitch Pivot Rear [402-840-590] Bush - Pitch Pivot Rear 402-840-590
US$43.91
11 Rear Float Beam Weldment [418-000-888] Rear Float Beam Weldment 418-000-888
Price on Request
