NOTES:

Part #	Number on image	Usage Notes
409-000-086	9	Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly
409-000-090	10	Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly
409-000-113	10	Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards
409-000-114	10	Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards Ram Specific to Pegasus S5 722 Model only ,used from serial number onwards : TNZ Manufactured: 781-722-511-1077336 TGB Manufactured: 781-722-501-3009014 TUS Manufactured: 781-722-503-2005050 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from above serial number onwards

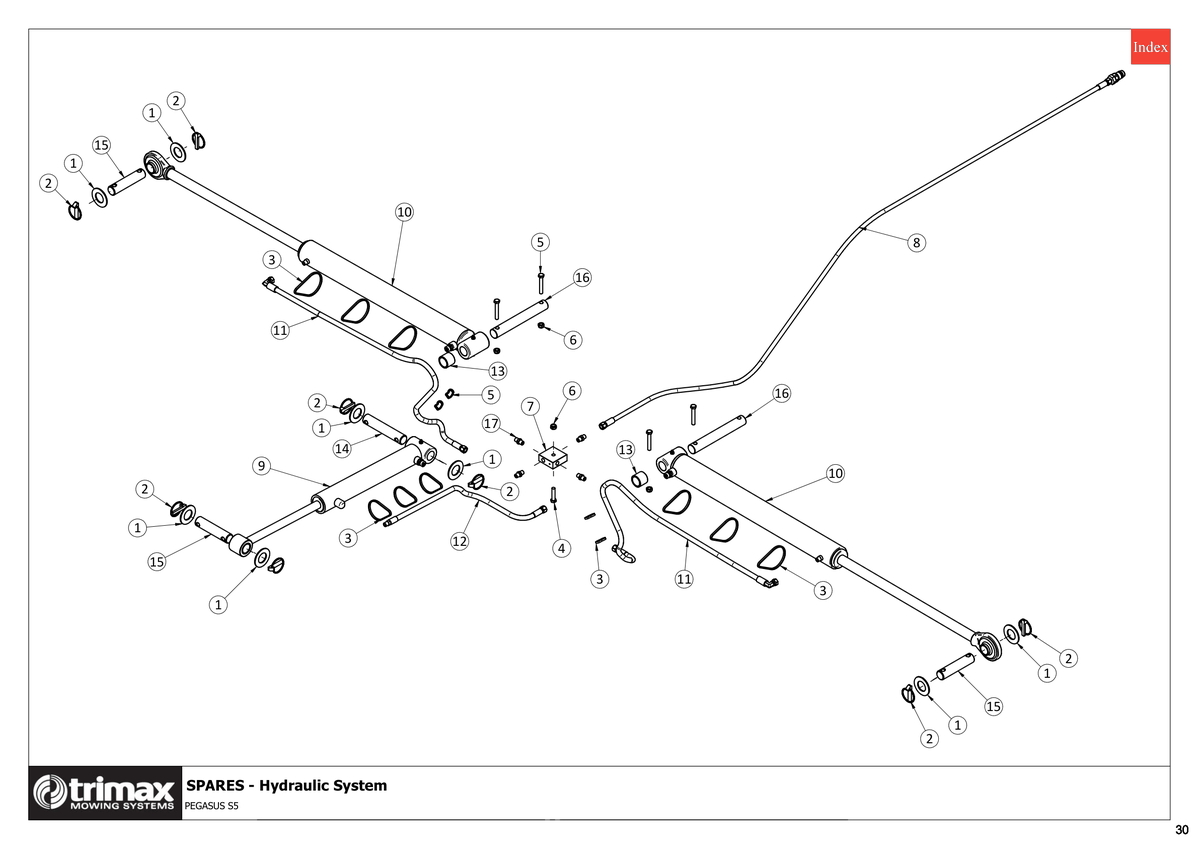

781 - Pegasus S5 - Hydraulic System

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	US$2.07
2	Linch Pin 203-300-700 More Info >	US$2.23
3	Cable tie 210-900-011 More Info >	US$0.77
4	Bolt 301-210-453 More Info >	Price on Request
5	Bolt 301-210-603 More Info >	US$0.80
6	Nut - Nyloc 307-210-053 More Info >	US$0.60
7	Junction Assembly - Hydraulic 408-448-500 More Info >	US$209.10
8	Hose Assembly - Hydraulic - Tractor 409-000-076 More Info >	US$107.73
9	Hydraulic Cylinder - Ø2" x 335 Stroke - Snake i See notes section for usage notes on this part 409-000-086 More Info >	US$853.40
10	Hydraulic Cylinder i See notes section for usage notes on this part 409-000-090 More Info >	US$1,154.50
10	Cylinder i See notes section for usage notes on this part 409-000-113	US$925.51
10	Cylinder i See notes section for usage notes on this part 409-000-114	US$925.51
13	Spacer Tube 418-000-510 More Info >	US$25.42
14	Pin - Hydraulic Cylinder 419-000-035 More Info >	US$21.92
15	Pin - Hydraulic Cylinder 419-000-039 More Info >	US$48.16
16	Pin - Lift Ram - Chassis 419-000-068 More Info >	US$156.54
