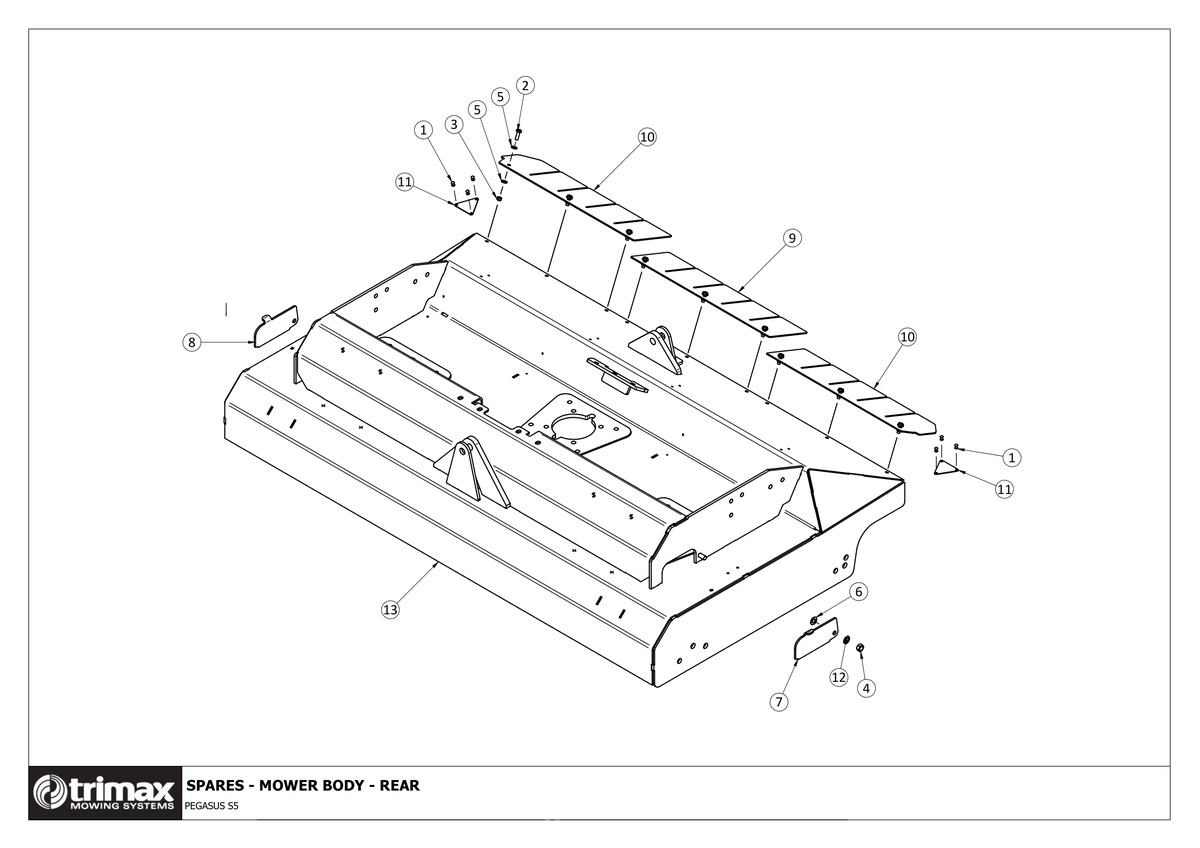

781 - Pegasus S5 - Mower Body Rear

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
2 Bolt [301-208-253] Bolt 301-208-253
US$0.89
3 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
4 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
5 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
6 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
7 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
US$24.04
8 Wash Panel - LH [410-000-135] Wash Panel - LH 410-000-135
US$24.04
9 Rear Flap - Inner - Procut S5 [410-000-461] Rear Flap - Inner - Procut S5 410-000-461
US$93.51
10 Rear Flap - Outer - Procut S5 [410-000-463] Rear Flap - Outer - Procut S5 410-000-463
US$34.61
11 Cap Plate [417-001-024] Cap Plate 417-001-024
US$2.39
12 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
