NOTES:

Part # Number on image Usage Notes
403-360-111 30
  • Idler Pulley assembly includes pulley, bearings, circlip, washer, assembled
403-360-110 47
  • Idler Pulley only "no bearings"

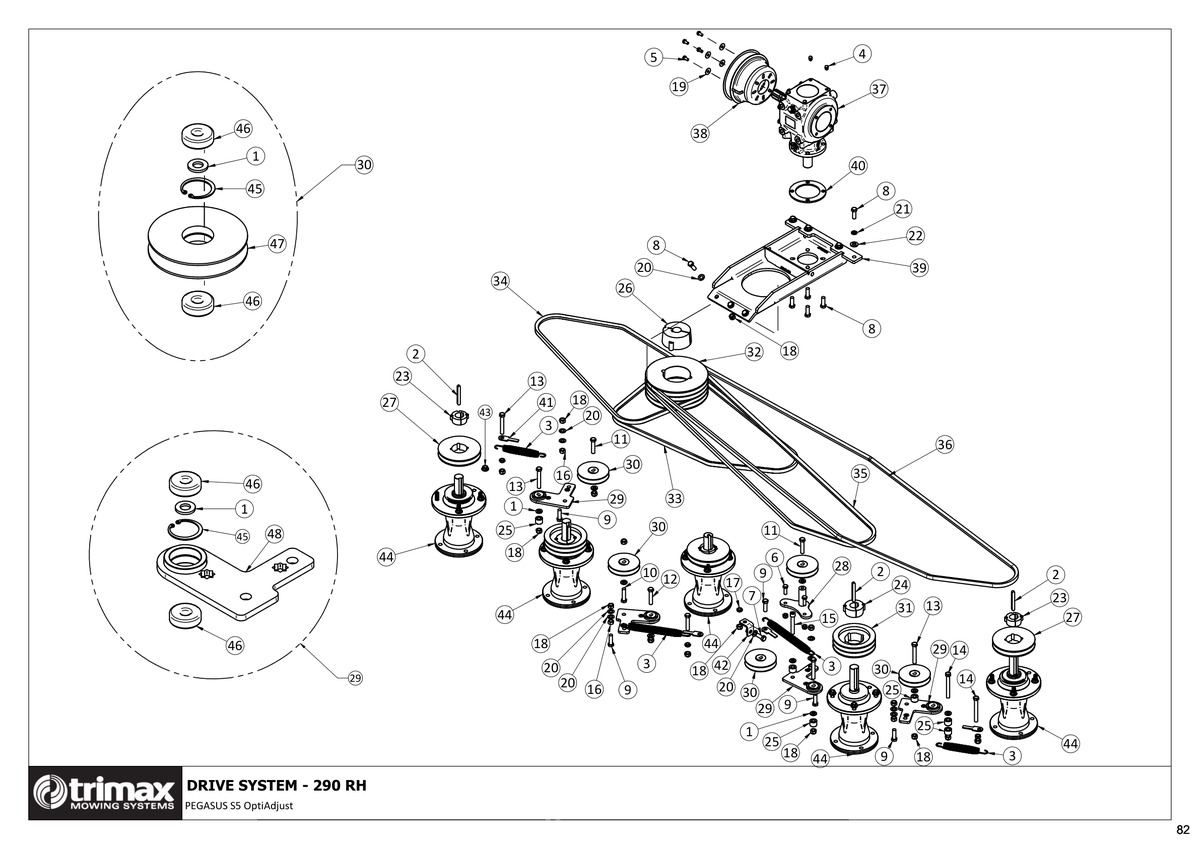

781 - Pegasus S5 OptiAdjust - Drive System 290 RH

Pegasus S5 OptiAdjust 722

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Key - 10 x 8 x 85 - Trimax Specification [205-000-003] Key - 10 x 8 x 85 - Trimax Specification 205-000-003
US$7.14
3 Spring - Deck Belt Tensioner - Trimax Specification - [207-000-009] Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009
US$6.21
4 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
5 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
6 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
7 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
8 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
9 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
10 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
US$3.87
11 Bolt - Hex Head - M12 x 55 - Trimax Specification [301-212-553] Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553
US$1.07
12 Bolt - Hex Head - M12 x 60 - Trimax Specification [301-212-603] Bolt - Hex Head - M12 x 60 - Trimax Specification 301-212-603
US$1.49
13 Bolt - Hex Head - M12 x 80 - Trimax Specification [301-212-803] Bolt - Hex Head - M12 x 80 - Trimax Specification 301-212-803
US$7.12
14 Bolt - Hex Head - M12 x 100 - Trimax Specification [301-612-103] Bolt - Hex Head - M12 x 100 - Trimax Specification 301-612-103
US$1.22
15 Cap Screw - Socket Head - M12 x 80 [303-212-803] Cap Screw - Socket Head - M12 x 80 303-212-803
Price on Request
16 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
17 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
18 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
19 Washer - Fender - M8 [308-080-073] Washer - Fender - M8 308-080-073
US$0.80
20 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
21 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
22 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
23 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
24 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
25 Idler Arm Spacer Bush - 19mm [402-000-134] Idler Arm Spacer Bush - 19mm 402-000-134
US$15.18
26 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
27 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
28 Idler Bracket Weldment - Long [403-000-113] Idler Bracket Weldment - Long 403-000-113
US$74.77
29 Idler Arm - Assembly [403-000-123] Idler Arm - Assembly 403-000-123
US$116.46
30 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111
US$70.88
31 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
32 Pulley - Taper Lock [403-361-290] Pulley - Taper Lock 403-361-290
US$221.40
33 Vee Belt - Trimax Specification [404-040-750] Vee Belt - Trimax Specification 404-040-750
US$30.38
35 Vee Belt - Trimax Specification [404-041-150] Vee Belt - Trimax Specification 404-041-150
US$50.63
36 Vee Belt - Trimax Specification [404-041-580] Vee Belt - Trimax Specification 404-041-580
US$61.63
37 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
38 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
39 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
40 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
41 Idler Arm - Spring Retainer - ZP [417-001-410] Idler Arm - Spring Retainer - ZP 417-001-410
US$10.71
42 Retaining Lug Weldment [417-001-665] Retaining Lug Weldment 417-001-665
US$59.94
43 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
44 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway 504-000-133
US$1,058.76
45 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
46 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
47 Pulley - Idler [403-360-110] Pulley - Idler i See notes section for usage notes on this part 403-360-110
US$41.94
48 Idler Arm - Weldment - ZP [403-000-122] Idler Arm - Weldment - ZP 403-000-122
US$109.52
