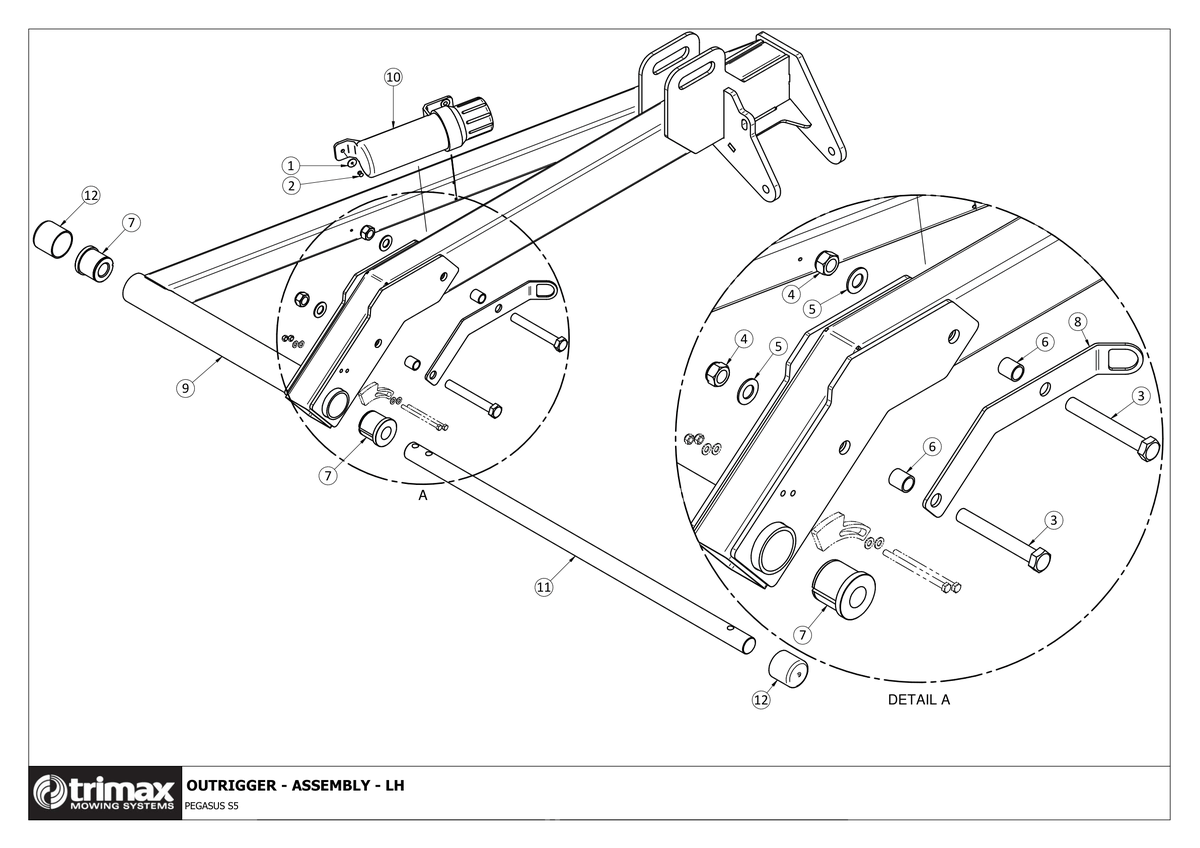

781 - Pegasus S5 OptiAdjust - Outrigger Assembly LH

Pegasus S5 OptiAdjust 493, Pegasus S5 OptiAdjust 610, Pegasus S5 OptiAdjust 722

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
3 Bolt - Hex Head - M20 x 150 - Trimax Specification [301-620-153] Bolt - Hex Head - M20 x 150 - Trimax Specification 301-620-153
Price on Request
4 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
5 Washer - Flat [308-200-013] Washer - Flat 308-200-013
US$0.25
6 Inner Ring - Lock Bush [401-000-018] Inner Ring - Lock Bush 401-000-018
US$14.26
7 Hinge Bush - Outrigger [402-000-149] Hinge Bush - Outrigger 402-000-149
US$50.86
8 Lock Boss Clevis Plate - Rh - Outrigger [418-000-879] Lock Boss Clevis Plate - Rh - Outrigger 418-000-879
US$29.60
10 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
US$33.38
11 Hinge Pin - Outrigger [419-000-066] Hinge Pin - Outrigger 419-000-066
US$268.70
12 Cap - Hinge Pin Ø 1 ¼" [209-000-009] Cap - Hinge Pin Ø 1 ¼" 209-000-009
US$7.15
