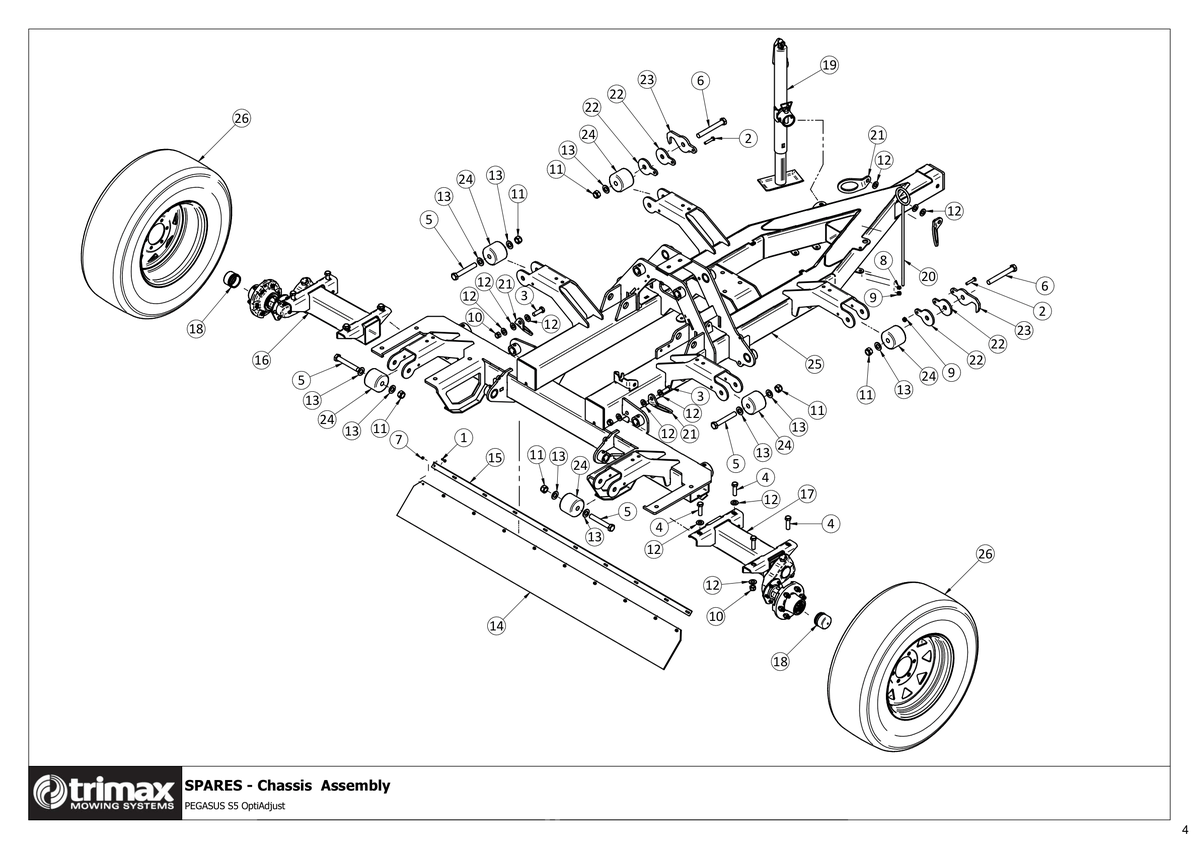

781 - Pegasus S5 OptiAdjust V2 - Chassis Assembly

Pegasus S5 OptiAdjust V2 493, Pegasus S5 OptiAdjust V2 610, Pegasus S5 OptiAdjust V2 722

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	US$0.11
2	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	US$1.64
3	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	US$4.33
4	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	US$10.87
5	Bolt - Hex Head - M20 x 130 - Trimax Specification 301-620-133 More Info >	US$12.38
6	Bolt - Hex Head - M20 x 160 - Trimax Specification 301-620-163	Price on Request
7	Nut - Nyloc 307-206-053 More Info >	US$0.10
8	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	US$0.60
9	Nut - Nyloc 307-210-053 More Info >	US$0.60
10	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
11	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	US$1.49
12	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
14	Safety Flap - Deck - Rear 178 410-841-120 More Info >	US$172.20
15	Clamp Strip - Safety Flap 178 410-841-200 More Info >	US$82.39
18	Bearing Buddy - Complete Assembly 416-000-140 More Info >	US$93.88
19	Parking Jack Assembly 418-000-217 More Info >	US$187.43
20	Guide 418-000-466 More Info >	US$36.54
22	Spacer - Transport Guide Hook 418-000-854 More Info >	US$11.36
23	Hook - Transport Guide 418-000-855 More Info >	US$13.69
24	Guide Roller 418-844-364 More Info >	US$72.35
25	Chassis Weldment – Pegasus S5 510-000-072 More Info >	Price on Request
