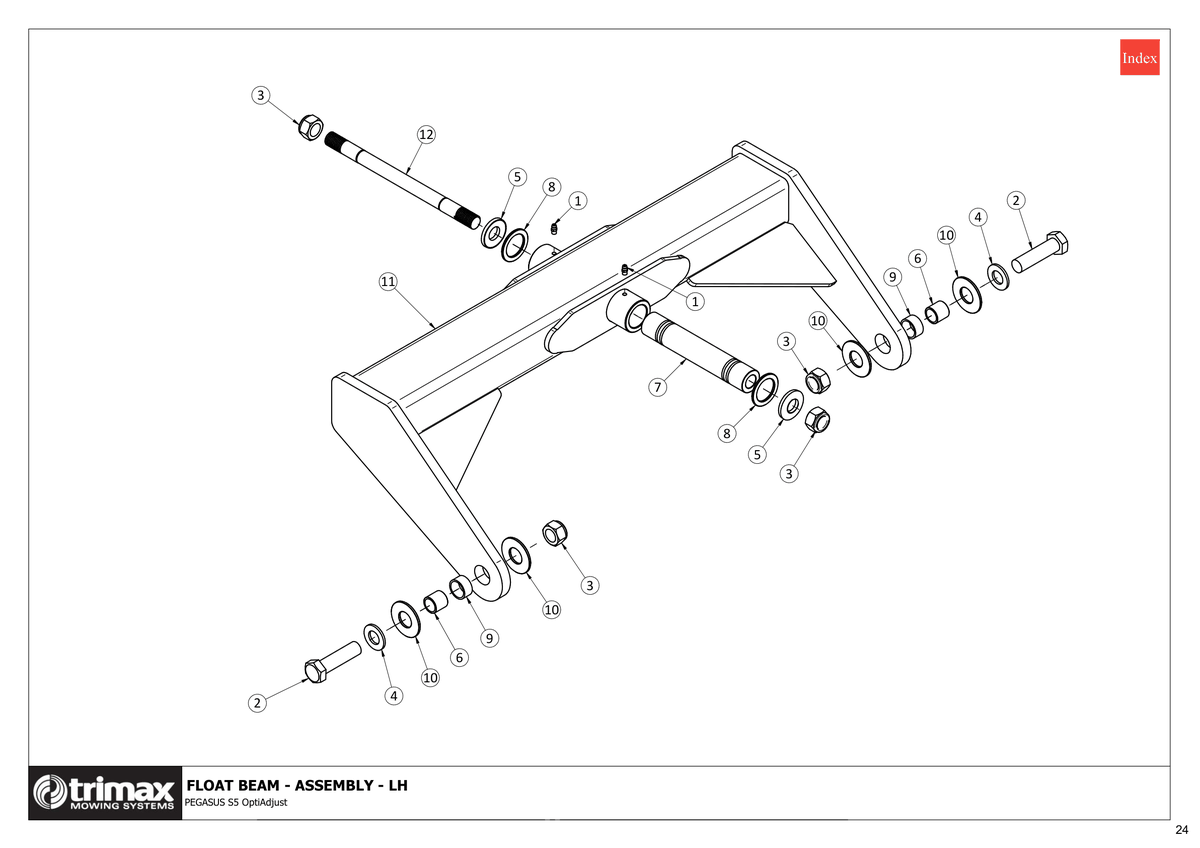

781 - Pegasus S5 OptiAdjust V2 - Float Beam LH

Pegasus S5 OptiAdjust V2 493, Pegasus S5 OptiAdjust V2 610, Pegasus S5 OptiAdjust V2 722

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
2 Bolt - Hex Head - M20 x 75 - Trimax Specification [301-220-753] Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753
US$13.55
3 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
4 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
5 Washer - Conical Spring M20 - Trimax Specification [308-200-093] Washer - Conical Spring M20 - Trimax Specification 308-200-093
US$6.68
6 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
US$13.03
7 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
US$148.53
9 Bush - Composite Pivot Bush [402-000-093] Bush - Composite Pivot Bush 402-000-093
US$29.87
10 Thrust Washer [402-000-105] Thrust Washer 402-000-105
US$14.84
11 Side Float Beam Weldment - LH [418-000-933] Side Float Beam Weldment - LH 418-000-933
US$1,135.50
12 Pin - Pitch Pivot [419-000-069] Pin - Pitch Pivot 419-000-069
US$67.44
