NOTES:

Part # Number on image Usage Notes
418-000-964 10
  • Use part number 510-000-080 for Rear Outrigger including Hinge Bush
  • Use part number 510-000-080 for Rear Outrigger including Hinge Bush
  • Use part number 510-000-080 for Rear Outrigger including Hinge Bush
  • Use part number 510-000-080 for Rear Outrigger including Hinge Bush

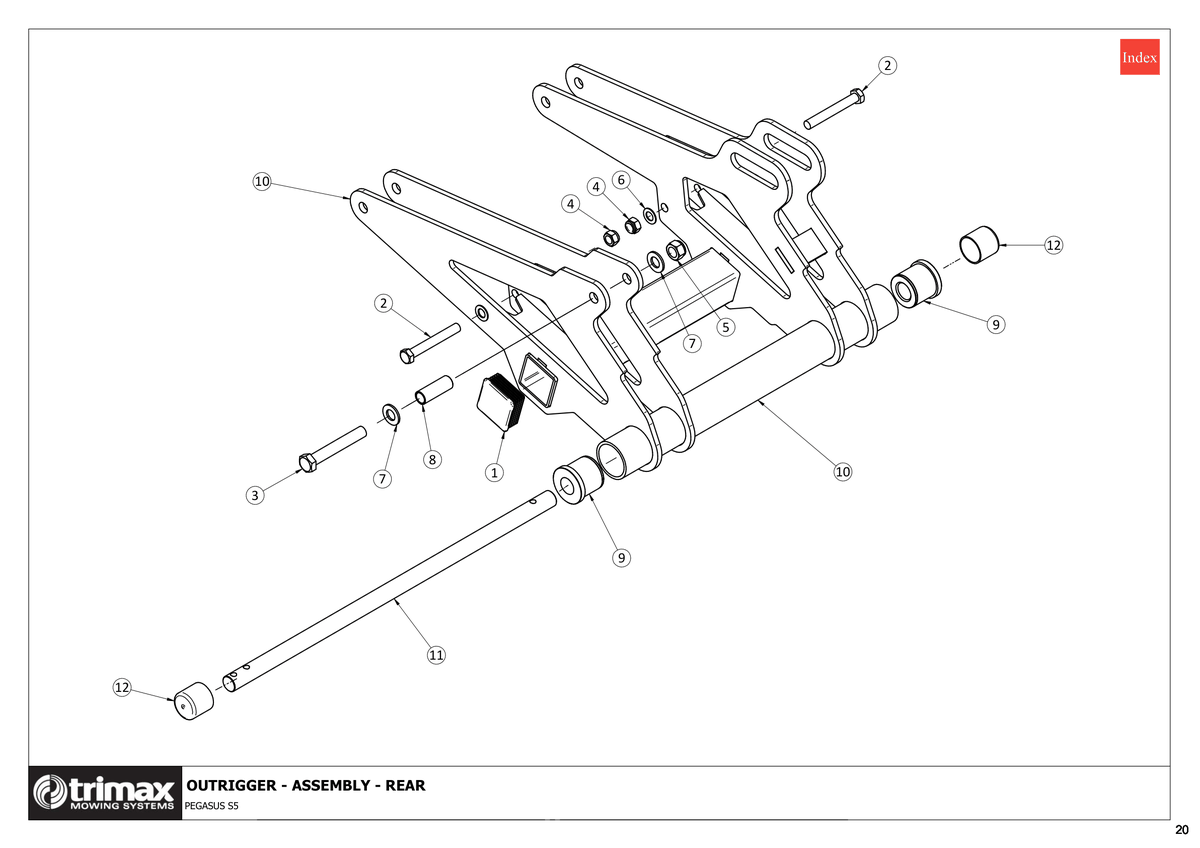

781 - Pegasus S5 - Outrigger Assembly Rear

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Cap - 75 X75 [209-000-008] Cap - 75 X75 209-000-008
US$13.42
2 Bolt - Hex Head - M16 x 120mm [301-616-123] Bolt - Hex Head - M16 x 120mm 301-616-123
Price on Request
3 Bolt [301-620-133] Bolt 301-620-133
US$12.38
4 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
5 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
US$1.49
6 Washer - Flat [308-160-013] Washer - Flat 308-160-013
US$0.61
7 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
US$1.05
8 Lock Bush - Rear [402-000-111] Lock Bush - Rear 402-000-111
US$8.39
9 Hinge Bush - Outrigger [402-000-149] Hinge Bush - Outrigger 402-000-149
US$50.86
10 Rear Outrigger Weldment [418-000-964] Rear Outrigger Weldment i See notes section for usage notes on this part 418-000-964
Price on Request
11 Hinge Pin - Outrigger [419-000-066] Hinge Pin - Outrigger 419-000-066
US$268.70
12 Cap - Hinge Pin Ø 1 ¼" [209-000-009] Cap - Hinge Pin Ø 1 ¼" 209-000-009
US$7.15
