NOTES:

Part # Number on image Usage Notes
421-000-392 28
  • LH and RH parts are identical
  • LH and RH parts are identical
  • LH and RH parts are identical
  • LH and RH parts are identical
421-000-393 30
  • LH and RH parts are identical
  • LH and RH parts are identical
  • LH and RH parts are identical
  • LH and RH parts are identical
421-000-396 34
  • LH and RH parts are identical
  • LH and RH parts are identical
  • LH and RH parts are identical
  • LH and RH parts are identical

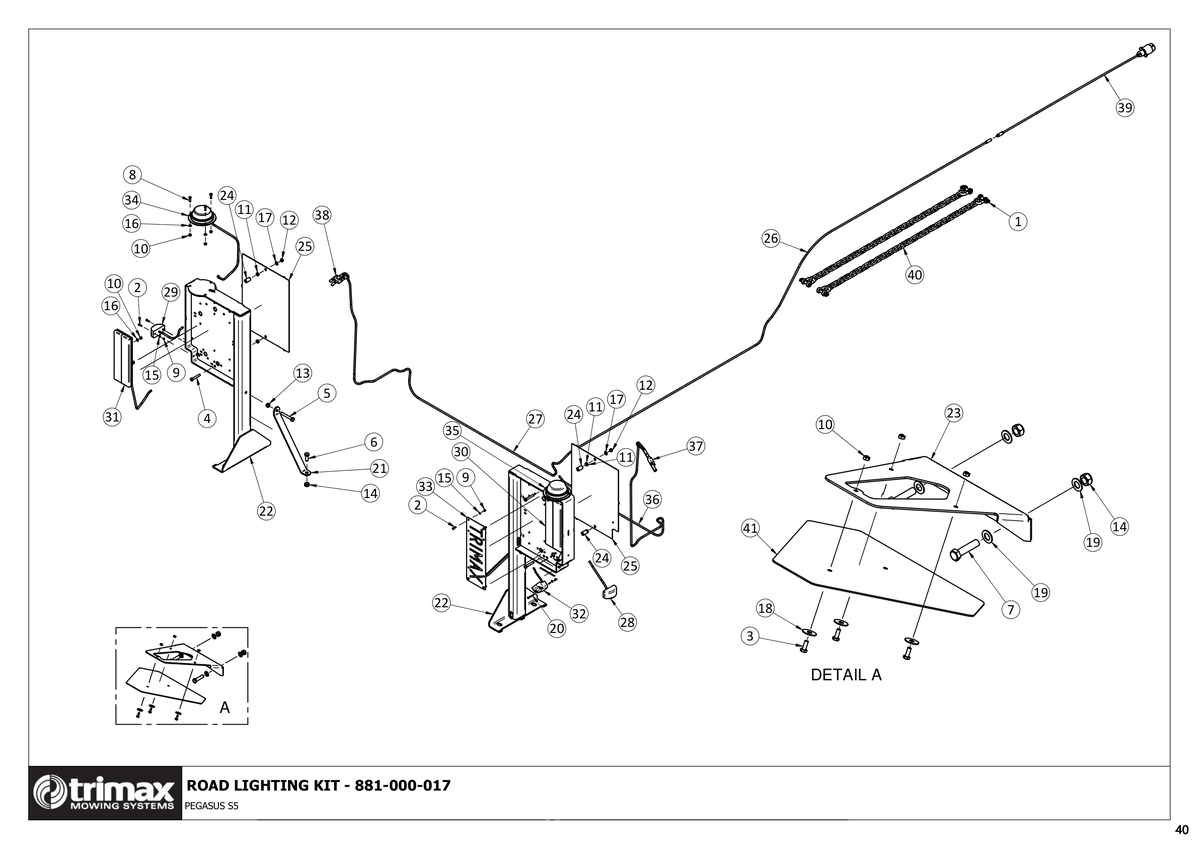

781 - Pegasus S5 - Road Kit - Option

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 D-Shackle NZS5467 [214-000-002] D-Shackle NZS5467 214-000-002
Price on Request
2 Bolt [301-204-163] Bolt 301-204-163
Price on Request
3 Bolt [301-206-163] Bolt 301-206-163
Price on Request
4 Bolt [301-208-503] Bolt 301-208-503
US$0.51
5 Bolt [301-210-703] Bolt 301-210-703
US$1.08
6 Bolt [301-212-303] Bolt 301-212-303
US$3.13
7 Bolt [301-212-503] Bolt 301-212-503
US$3.87
9 Nut - Nyloc [307-204-053] Nut - Nyloc 307-204-053
Price on Request
10 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
11 Nut - Plain [307-208-013] Nut - Plain 307-208-013
US$0.20
12 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
13 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
14 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
15 Washer - Flat [308-040-013] Washer - Flat 308-040-013
US$0.38
16 Washer - Flat [308-060-013] Washer - Flat 308-060-013
US$0.05
17 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
18 Washer - Fender - M8 [308-080-073] Washer - Fender - M8 308-080-073
Price on Request
19 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
20 Screw [315-204-356] Screw 315-204-356
Price on Request
21 Tie Support Rod- Mudguard [410-000-432] Tie Support Rod- Mudguard 410-000-432
US$12.18
22 Road Lighting - Weldment - L&R [418-000-911] Road Lighting - Weldment - L&R 418-000-911
Price on Request
23 Mount Plate - Slow Moving Triangle [418-000-916] Mount Plate - Slow Moving Triangle 418-000-916
US$68.53
24 Light Bracket - Cover Plate Spacer [418-000-931] Light Bracket - Cover Plate Spacer 418-000-931
Price on Request
25 Light Bracket - Cover Plate [418-000-932] Light Bracket - Cover Plate 418-000-932
Price on Request
26 Loom - Tail Light Cable 3.7m 5 Core Split End [421-000-067] Loom - Tail Light Cable 3.7m 5 Core Split End 421-000-067
US$64.10
27 Loom - Tail Light Cable 1.9m [421-000-069] Loom - Tail Light Cable 1.9m 421-000-069
US$38.10
28 Light - Side Marker [421-000-392] Light - Side Marker i See notes section for usage notes on this part 421-000-392
Price on Request
30 Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug [421-000-393] Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug i See notes section for usage notes on this part 421-000-393
US$207.65
32 Light - Number Plate [421-000-394] Light - Number Plate 421-000-394
Price on Request
34 Led Strobe Light - Safety Beacon [421-000-396] Led Strobe Light - Safety Beacon i See notes section for usage notes on this part 421-000-396
Price on Request
36 Cable - 1.7m 4 Core Gooseneck End [421-000-400] Cable - 1.7m 4 Core Gooseneck End 421-000-400
Price on Request
37 2 Core Splitter Plug - 3 Way NAPA Part Number: 2P4WB [421-000-418] 2 Core Splitter Plug - 3 Way NAPA Part Number: 2P4WB 421-000-418
Price on Request
38 2 Core Splitter Plug - 2 Way [421-000-450] 2 Core Splitter Plug - 2 Way 421-000-450
Price on Request
39 Trailer Plug inc. Cable 1m /w Metal Plug [421-000-586] Trailer Plug inc. Cable 1m /w Metal Plug 421-000-586
Price on Request
41 Sign - Safety Triangle [450-000-124] Sign - Safety Triangle 450-000-124
US$149.74
