NOTES:

Part # Number on image Usage Notes
421-000-564 49
  • For MLS PCB use part numbers: 421-000-086 - Circuit Board - MLS - Assembly (v2) 421-000-565 - Circuit Board - MLS - Assembly (v3)

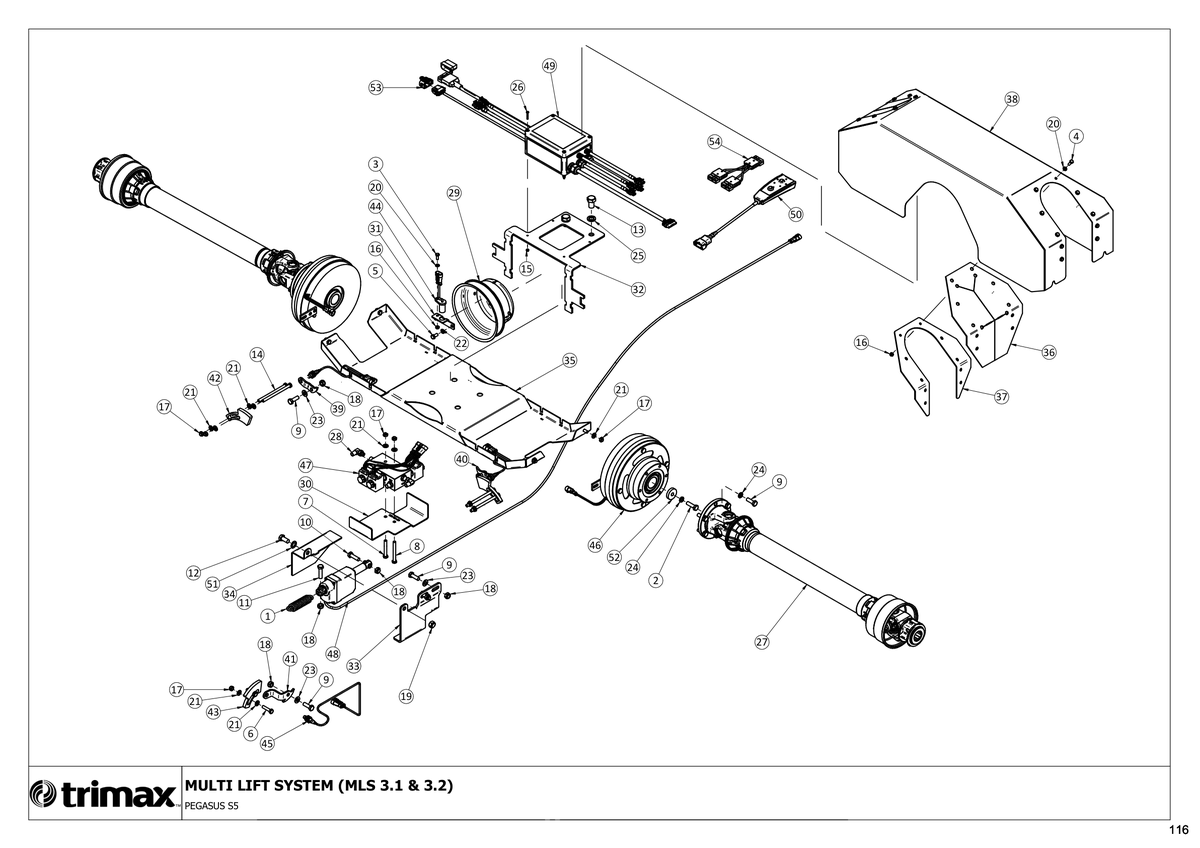

781 - Pegasus S5 SR 722 - Multi Lift System (MLS 3.1 and 3.2)

Pegasus S5 SR 722

Grouped product items
No. Image Product Name Price Quantity
1 Spring - Tension [207-000-008] Spring - Tension 207-000-008
US$68.23
2 Bolt [301-110-353] Bolt 301-110-353
US$0.61
3 Bolt - Hex Head - M6 x 16 - Trimax Specification [301-206-163] Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163
US$0.35
4 Bolt - Hex Head - M6 x 20 - Trimax Specification [301-206-203] Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203
US$0.12
5 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
6 Bolt - Hex Head - M8 x 35 - Trimax Specification [301-208-353] Bolt - Hex Head - M8 x 35 - Trimax Specification 301-208-353
Price on Request
7 Bolt - Hex Head - M8 x 60 - Trimax Specification [301-208-603] Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603
US$0.52
8 Bolt - Hex Head - M8 x 75 - Trimax Specification [301-208-753] Bolt - Hex Head - M8 x 75 - Trimax Specification 301-208-753
Price on Request
9 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
10 Bolt - Hex Head - M10 x 35 - Trimax Specification [301-210-353] Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353
US$0.68
11 Bolt - Hex Head - M10 x 40 - Trimax Specification [301-210-403] Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403
US$0.72
12 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
US$2.26
13 Bolt - Hex Head - M16 x 25 - Trimax Specification [301-216-253] Bolt - Hex Head - M16 x 25 - Trimax Specification 301-216-253
US$1.32
14 Bolt - Hex Head - M8 x 120 - Trimax Specification [301-608-123] Bolt - Hex Head - M8 x 120 - Trimax Specification 301-608-123
Price on Request
15 Nut - Nyloc [307-204-053] Nut - Nyloc 307-204-053
US$0.09
16 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
17 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
18 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
19 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
20 Washer - Flat [308-060-013] Washer - Flat 308-060-013
US$0.05
21 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
22 Washer - Spring [308-080-043] Washer - Spring 308-080-043
US$0.29
23 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
24 Washer - Spring [308-100-043] Washer - Spring 308-100-043
US$0.29
25 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
27 PTO Shaft - 6 Bolt Flange [406-340-592] PTO Shaft - 6 Bolt Flange 406-340-592
US$403.55
28 90 Deg Hyd Fitting [408-000-084] 90 Deg Hyd Fitting 408-000-084
Price on Request
29 PTO Cone - MLS - sensor/holes punched [410-440-404] PTO Cone - MLS - sensor/holes punched 410-440-404
Price on Request
30 Mount Bracket Folding [418-000-398] Mount Bracket Folding 418-000-398
US$40.52
32 Mount Plate - Mls Electrical Box [418-000-867] Mount Plate - Mls Electrical Box 418-000-867
Price on Request
33 Bracket - Remote Unlock [418-000-899] Bracket - Remote Unlock 418-000-899
Price on Request
34 Cover - Remote Unlock [418-000-901] Cover - Remote Unlock 418-000-901
Price on Request
35 MLS Bottom Cover [418-000-942] MLS Bottom Cover 418-000-942
Price on Request
36 MLS Cover Insert [418-000-943] MLS Cover Insert 418-000-943
US$61.18
37 MLS Insert Retainer Plate [418-000-944] MLS Insert Retainer Plate 418-000-944
Price on Request
38 MLS Top Cover [418-000-970] MLS Top Cover 418-000-970
Price on Request
39 Mount Tab - Prox LH - ZP [418-000-988] Mount Tab - Prox LH - ZP 418-000-988
Price on Request
40 Mount Tab - Prox RH - ZP [418-000-989] Mount Tab - Prox RH - ZP 418-000-989
Price on Request
41 Mount - Prox Rear - ZP [418-000-991] Mount - Prox Rear - ZP 418-000-991
Price on Request
42 Sensor Outrigger Tab - Side - ZP [418-000-993] Sensor Outrigger Tab - Side - ZP 418-000-993
Price on Request
43 Sensor Outrigger Tab - Rear - ZP [418-000-995] Sensor Outrigger Tab - Rear - ZP 418-000-995
Price on Request
46 Clutch & Plug Assembly - MLS [421-000-138] Clutch & Plug Assembly - MLS 421-000-138
Price on Request
48 Actuator Assembly [421-000-397] Actuator Assembly 421-000-397
US$684.58
49 Control box subassembly - MLS with Drive Protect - Firmware flashed, decal applied, unit tested [421-000-564] Control box subassembly - MLS with Drive Protect - Firmware flashed, decal applied, unit tested i See notes section for usage notes on this part 421-000-564
Price on Request
50 Cab Controller Assembly - MLS with Drive Protect [421-000-612] Cab Controller Assembly - MLS with Drive Protect 421-000-612
Price on Request
51 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
52 Retaining Washer - Electric Clutch [450-844-160] Retaining Washer - Electric Clutch 450-844-160
US$17.24
53 Connector Cap [478-000-022] Connector Cap 478-000-022
Price on Request
54 Wiring Harness - Y-Connector - Trimax Specification [485-000-015] Wiring Harness - Y-Connector - Trimax Specification 485-000-015
Price on Request
