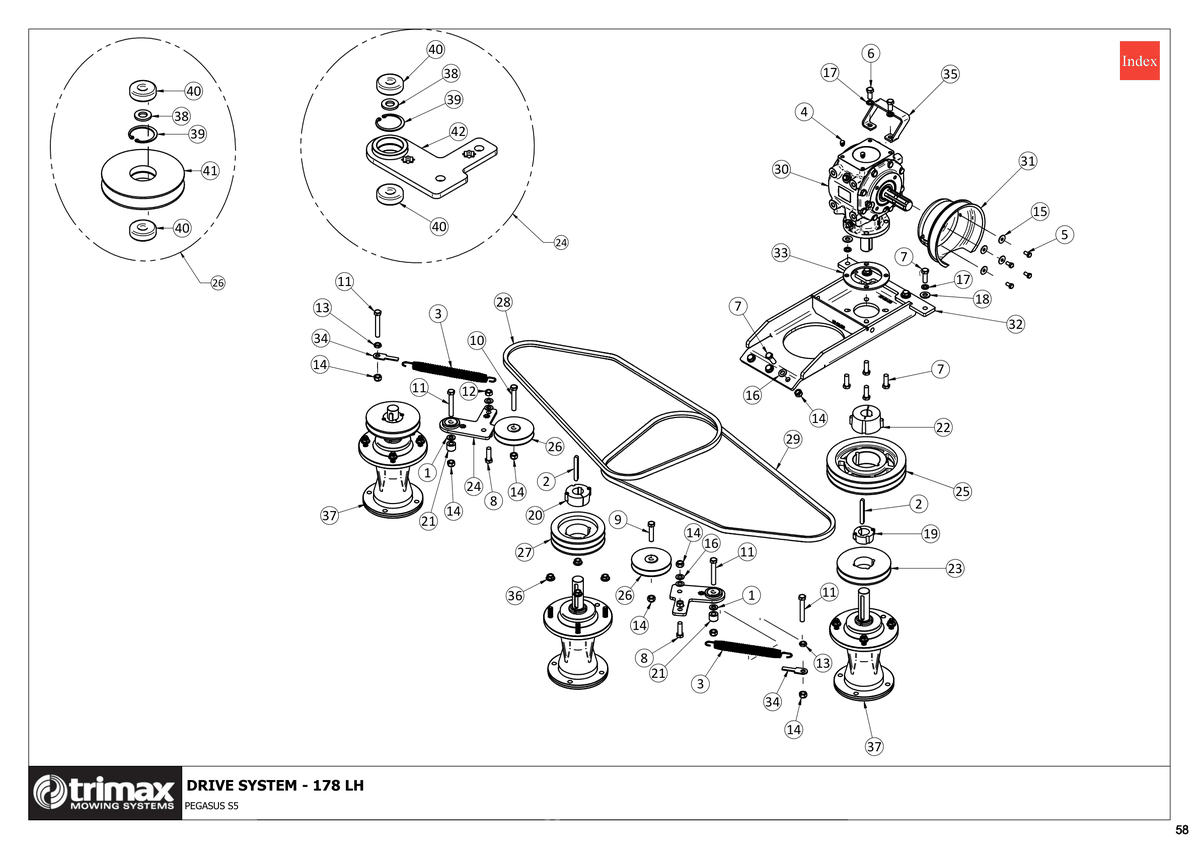

781 - Pegasus S5 SR - Drive System 178 LH

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No. Image Product Name Price Quantity
2 Key - 10 x 8 x 85 DIN6885 Form A [205-000-003] Key - 10 x 8 x 85 DIN6885 Form A 205-000-003
US$7.14
3 Spring - Tension [207-000-009] Spring - Tension 207-000-009
US$6.21
4 Blanking Plug [209-900-012] Blanking Plug 209-900-012
US$0.35
5 Bolt [301-208-163] Bolt 301-208-163
US$1.05
6 Bolt [301-212-253] Bolt 301-212-253
US$2.26
7 Bolt [301-212-353] Bolt 301-212-353
US$2.98
8 Bolt [301-212-403] Bolt 301-212-403
US$8.93
9 Bolt [301-212-553] Bolt 301-212-553
US$1.07
10 Bolt [301-212-753] Bolt 301-212-753
US$1.45
11 Bolt [301-212-803] Bolt 301-212-803
US$7.12
12 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
13 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
14 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
15 Washer - Fender - M8 [308-080-073] Washer - Fender - M8 308-080-073
US$0.80
16 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
17 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
18 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
19 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
20 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
21 Idler Arm Spacer Bush - 19mm [402-000-134] Idler Arm Spacer Bush - 19mm 402-000-134
US$15.18
22 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
US$57.31
23 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
24 Idler Arm - Assembly [403-000-123] Idler Arm - Assembly 403-000-123
US$116.46
25 Pulley - Taper Lock Ø224 SPB x 2 [403-000-130] Pulley - Taper Lock Ø224 SPB x 2 403-000-130
US$87.83
26 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
27 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
28 Vee Belt [404-040-750] Vee Belt 404-040-750
US$30.38
30 Gearbox [405-200-720] Gearbox 405-200-720
US$1,405.69
31 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
32 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
33 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
34 Idler Arm - Spring Retainer - ZP [417-001-410] Idler Arm - Spring Retainer - ZP 417-001-410
US$10.71
35 Folding [418-000-633] Folding 418-000-633
Price on Request
36 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
37 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway 504-000-133
US$1,058.76
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
39 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
40 Bearing [401-021-900] Bearing 401-021-900
US$18.52
41 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
42 Idler Arm - Weldment - ZP [403-000-122] Idler Arm - Weldment - ZP 403-000-122
US$109.52
