NOTES:

Part #	Number on image	Usage Notes
412-000-148	19	Antibounce Skid available as an option
404-320-129	20	Roller Scraper available as an option

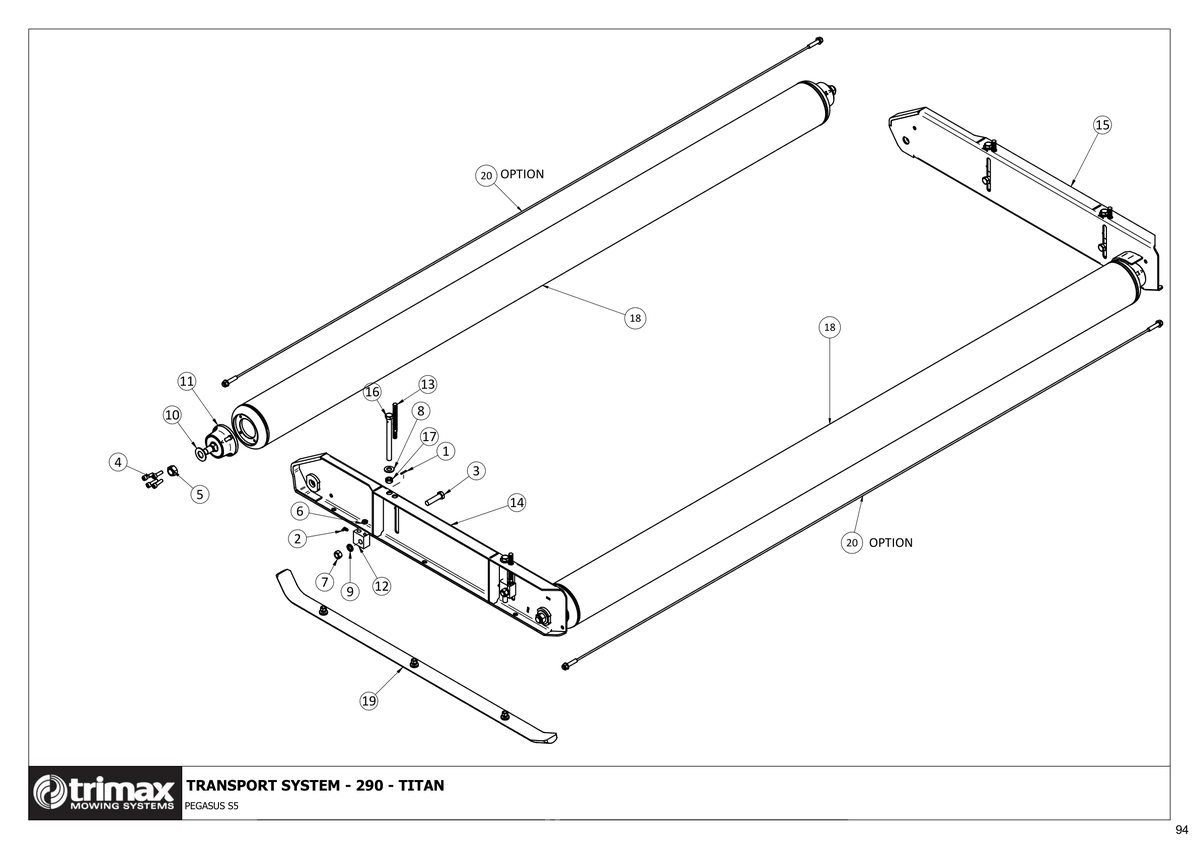

781 - Pegasus S5 - Transport System 290

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	US$2.10
2	Grease Nipple 208-442-650 More Info >	US$4.76
3	Bolt 301-216-653 More Info >	US$5.20
4	Cap Screw 303-210-353 More Info >	US$1.49
5	Nut Nyloc 307-122-053 More Info >	US$8.98
6	Nut - Half 307-212-023 More Info >	US$0.80
7	Nut - Plain 307-216-013 More Info >	US$1.05
8	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
9	Washer - Nordloc 308-160-083 More Info >	US$5.62
10	Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063 More Info >	US$1.31
11	Bearing Assembly - Titan 401-000-035 More Info >	US$181.58
12	Height Adjuster Block 412-000-255 More Info >	US$58.77
13	Height Indicator Rod - 6 Sided 412-000-580 More Info >	US$29.59
14	Side Channel Weldment - Titan Bearing - LH 412-000-594 More Info >	US$400.66
15	Side Channel Weldment - Titan Bearing - RH 412-000-595 More Info >	US$400.66
16	Set Screw 412-000-609 More Info >	US$35.70
17	Collar - Height Adjuster 412-850-260 More Info >	US$22.17
18	Roller Weldment 414-000-159 More Info >	US$808.58
19	Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148 More Info >	US$185.94
20	Scraper - Roller 290 i See notes section for usage notes on this part 404-320-129 More Info >	US$100.94
