NOTES:

Part # Number on image Usage Notes
504-000-133 28
  • The new spindle with keyway is backwards compatible with prior machines

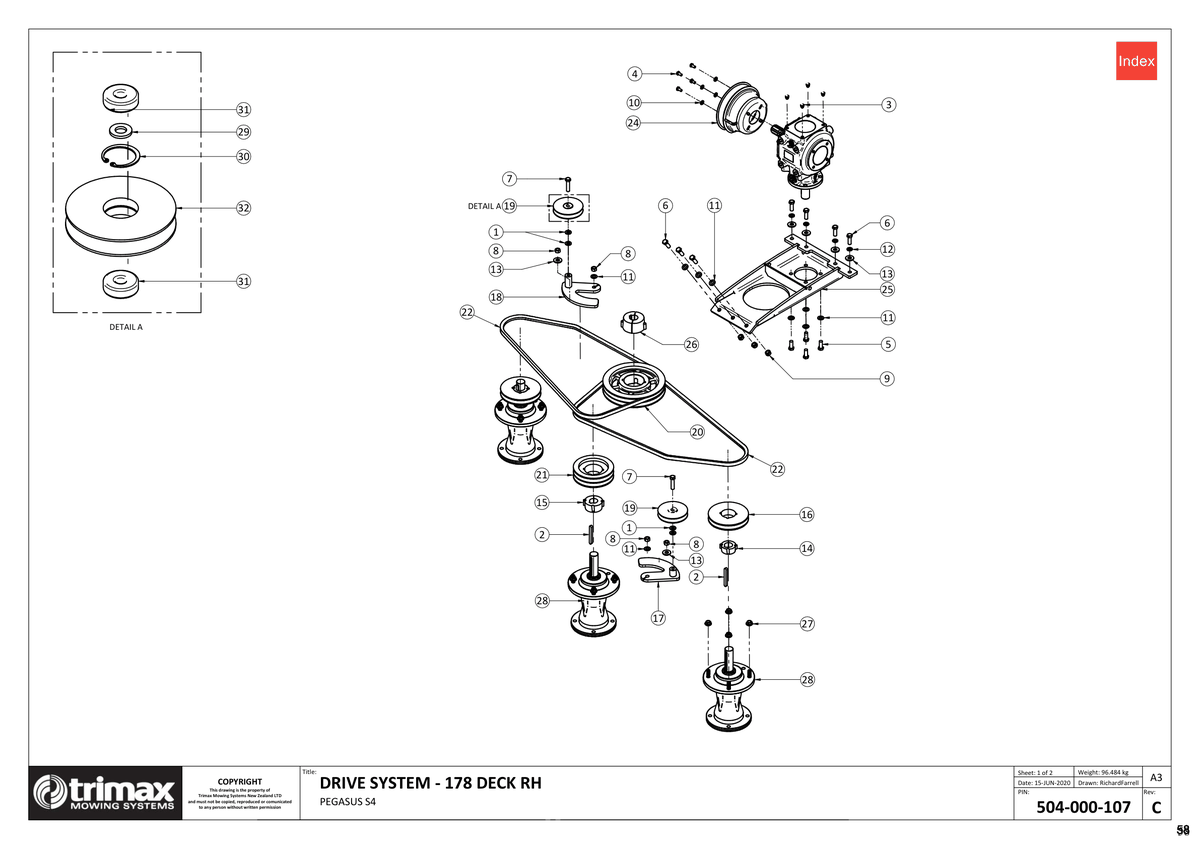

Pegasus S4 Drive System 178 Deck RH – Current

Pegasus S4 493

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Key - 10 x 8 x 85 - Trimax Specification [205-000-003] Key - 10 x 8 x 85 - Trimax Specification 205-000-003
US$7.14
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
5 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
6 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
7 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
US$3.87
8 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
9 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
10 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
11 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
12 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
13 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
14 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
15 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
16 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
17 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
18 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
19 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
21 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
22 Vee Belt - Trimax Specification [404-040-750] Vee Belt - Trimax Specification 404-040-750
US$30.38
23 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
24 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
25 Gearbox Mount Weldment [417-001-197] Gearbox Mount Weldment 417-001-197
US$288.36
26 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
US$57.31
27 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
28 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133
US$1,058.76
30 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
31 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
32 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
