NOTES:

Part #	Number on image	Usage Notes
408-000-083	2	This is the upgraded breather, the old breather part number is 408-448-480 This is the upgraded breather, the old breather part number is 408-448-480
408-845-100	4	Seals are only available as a kit, Kit part number is 408-845-001 Seals are only available as a kit, Kit part number is 408-845-001
408-845-140	8	Seals are only available as a kit, Kit part number is 408-845-001 Seals are only available as a kit, Kit part number is 408-845-001
408-845-120	10	Seals are only available as a kit, Kit part number is 408-845-001 Seals are only available as a kit, Kit part number is 408-845-001
408-845-110	11	Seals are only available as a kit, Kit part number is 408-845-001 Seals are only available as a kit, Kit part number is 408-845-001
408-845-150	12	Seals are only available as a kit, Kit part number is 408-845-001 Seals are only available as a kit, Kit part number is 408-845-001

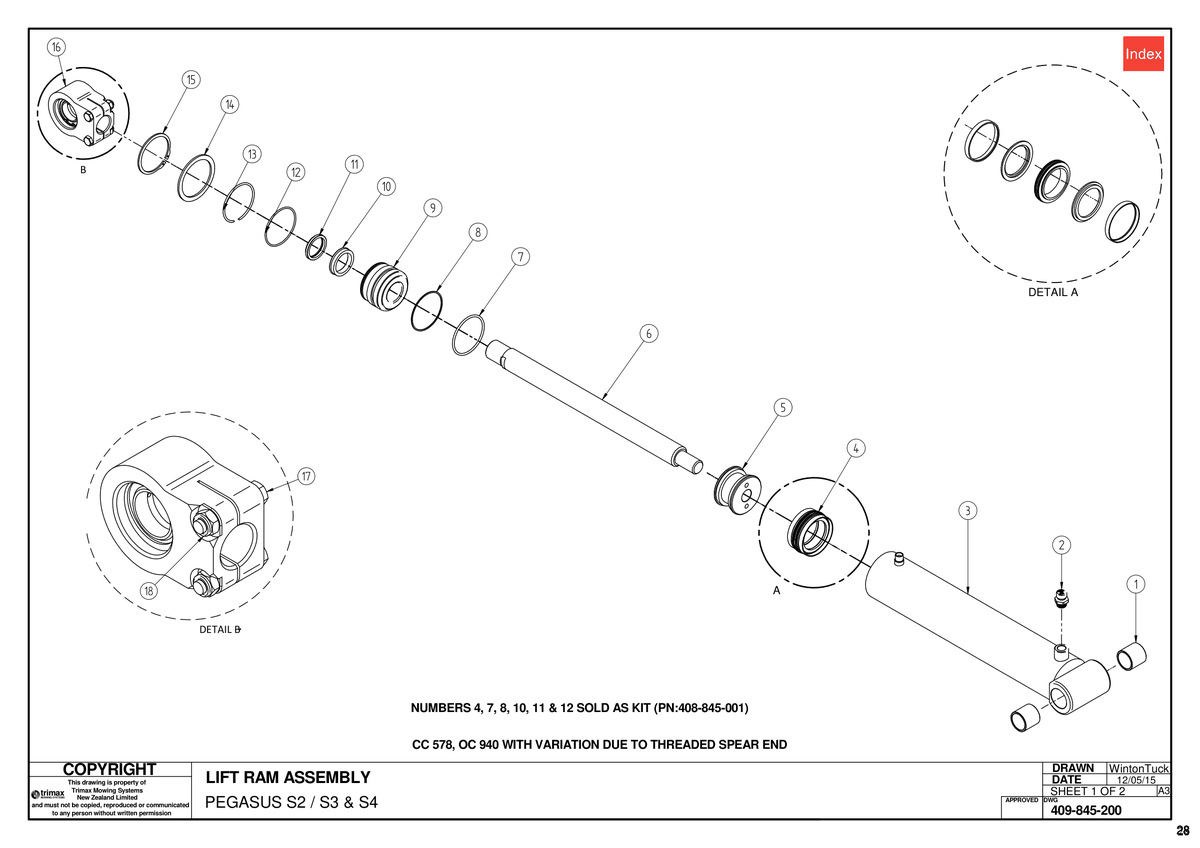

PEGASUS SERIES 4 - HYDRAULIC RAM ASSEMBLY - 409-845-200

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Bush 402-845-060 More Info >	US$74.42
2	Breather - Capped 3/8" BSP i See notes section for usage notes on this part 408-000-083 More Info >	US$14.18
3	Cylinder 408-845-210 More Info >	Price on Request
4	Seal Assembly i See notes section for usage notes on this part 408-845-100 More Info >	Price on Request
5	Piston 408-845-090 More Info >	Price on Request
6	Spear 408-845-220 More Info >	US$312.07
8	Back-Up Ring i See notes section for usage notes on this part 408-845-140 More Info >	Price on Request
9	Head 408-845-230 More Info >	US$224.12
10	Head Seal i See notes section for usage notes on this part 408-845-120 More Info >	Price on Request
11	D Wiper i See notes section for usage notes on this part 408-845-110 More Info >	Price on Request
12	O Ring i See notes section for usage notes on this part 408-845-150 More Info >	Price on Request
13	Wire Clip 408-845-160 More Info >	US$25.38
14	Retainer Ring - Hydraulic Cylinder 408-845-245 More Info >	Price on Request
15	Circlip/Snap Ring - External 204-820-802 More Info >	Price on Request
16	Rod End Assy - Spherical Bearing 409-000-014 More Info >	US$528.89
17	Bolt - Hex Head - M10 x 55 - Trimax Specification 301-210-553 More Info >	Price on Request
18	Nut - Nyloc 307-210-053 More Info >	US$0.60
