NOTES:

Part #	Number on image	Usage Notes
410-330-373	38	For serial numbers PCD300 to STD036, use [410-330-373] Left Body Cover. For serial numbers PCD192 to PCD299, use [410-330-373] Left Body Cover. For serial numbers PCD191 and earlier, use [410-330-363] Left Body Cover.
410-330-374	39	For serial numbers PCD300 to STD036, use [410-330-374] Right Body Cover. For serial numbers PCD192 to PCD299, use [410-330-374] Right Body Cover. For serial numbers PCD191 and earlier, use [410-330-364] Right Body Cover.
410-330-383	40	For serial numbers PCD300 to STD036, use [410-330-383] Left Wing Cover. For serial numbers PCD192 to PCD299, use [410-330-377] Left Wing Cover. For serial numbers PCD191 and earlier, use [410-330-367] Left Wing Cover.
410-330-384	41	For serial numbers PCD300 to STD036, use [410-330-384] Right Wing Cover. For serial numbers PCD192 to PCD299, use [410-330-378] Right Wing Cover. For serial numbers PCD191 and earlier, use [410-330-368] Right Wing Cover.
410-330-375	42	For serial numbers PCD300 and earlier, use [410-330-365] Filler Rubber.
423-080-220	45	For serial numbers STD041 and earlier, use [423-080-200] Cover Latch.

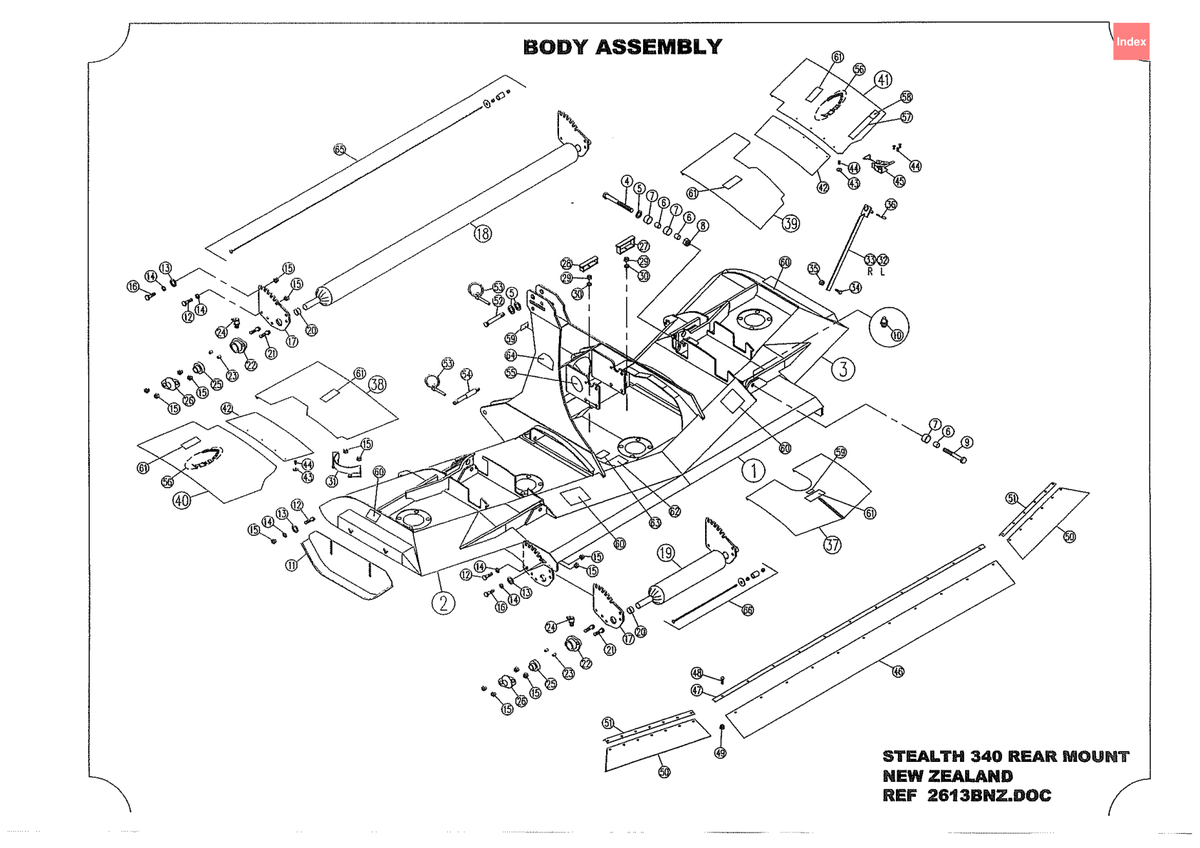

Stealth S1 - Body Assembly

Stealth S1 340

Grouped product items
No.	Product Name	Price
5	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
10	Grease Nipple - Trimax Specification 208-442-600 More Info >	US$3.72
12	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	US$2.98
13	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
16	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	US$8.93
20	Sleeve 402-464-062 More Info >	US$7.13
21	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	US$3.87
22	Bearing Housing 401-020-800 More Info >	US$21.36
23	Sleeve 402-480-740 More Info >	US$1.72
24	Grease Nipple - Trimax Specification 208-442-620 More Info >	US$4.02
26	Cap 410-464-072 More Info >	US$24.48
29	Nut - Nyloc 307-208-053 More Info >	US$1.34
30	Washer - Spring 308-080-043 More Info >	US$0.29
32	Stay 417-332-064 More Info >	Price on Request
33	Stay 417-332-065 More Info >	Price on Request
34	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	US$3.72
35	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
38	Cover i See notes section for usage notes on this part 410-330-373 More Info >	US$202.85
39	Cover i See notes section for usage notes on this part 410-330-374 More Info >	US$202.85
40	Cover i See notes section for usage notes on this part 410-330-383 More Info >	US$186.45
41	Cover i See notes section for usage notes on this part 410-330-384 More Info >	US$186.45
42	Filler Rubber i See notes section for usage notes on this part 410-330-375 More Info >	US$33.97
43	Washer - Fender 108-031-413 More Info >	US$0.17
44	Blind Rivet 213-443-250 More Info >	US$0.60
45	Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220 More Info >	US$25.50
46	Flap 410-332-011 More Info >	Price on Request
47	Clamp Strip 410-332-032 More Info >	Price on Request
48	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	US$0.12
49	Nut - Nyloc 307-206-053 More Info >	US$0.10
50	Flap 410-332-000 More Info >	Price on Request
51	Clamp Strip 410-332-044 More Info >	Price on Request
52	Pin - Linkage - Top Link 419-301-150 More Info >	US$13.68
53	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	US$2.23
54	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	US$25.34
56	Decal 424-100-350 More Info >	Price on Request
57	Decal - Branding Stealth 424-100-410 More Info >	Price on Request
59	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	US$6.06
60	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	US$4.10
62	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	US$3.69
65	Roller Scraper 404-320-127 More Info >	US$82.00
