NOTES:

Part #	Number on image	Usage Notes
409-448-003	1	Originally all rams were manufactured by Trimax Industries Ltd. There was a slight modification in the seals but otherwise they are all the same. Trimax rams can be identified by a serial number beginning with a 'T' stamped onto the tail of the cylinder. From serial number STD044, the rams listed above were used. Some old parts are still available on request.
409-448-004	2	Originally all rams were manufactured by Trimax Industries Ltd. There was a slight modification in the seals but otherwise they are all the same. Trimax rams can be identified by a serial number beginning with a 'T' stamped onto the tail of the cylinder. From serial number STD044, the rams listed above were used. Some old parts are still available on request.

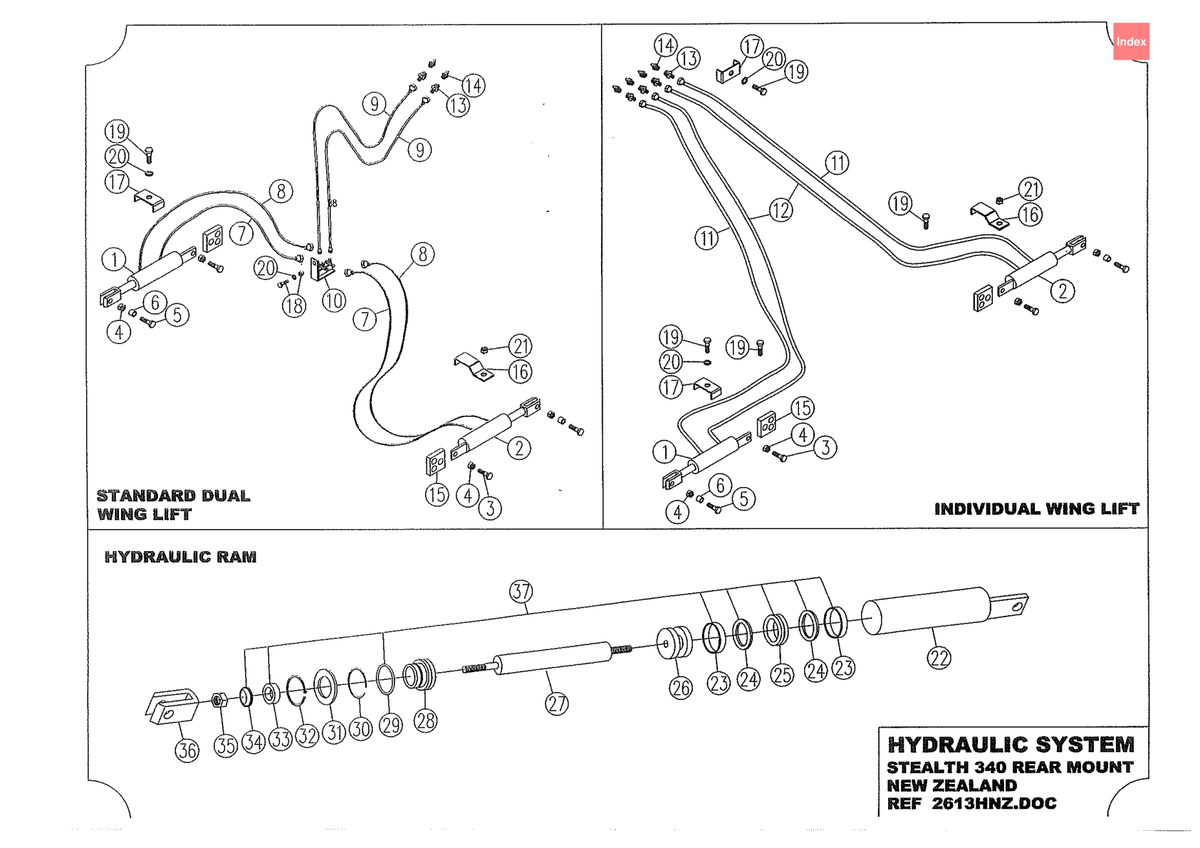

Stealth S1 - Individual Lift Hydraulic System

Stealth S1 340

Grouped product items
No.	Product Name	Price
1	Lift Ram Assembly i See notes section for usage notes on this part 409-448-003 More Info >	US$616.75
2	Lift Ram Assembly i See notes section for usage notes on this part 409-448-004 More Info >	US$616.75
4	Nut - Plain 307-220-013 More Info >	US$1.29
13	Nipple 408-448-280 More Info >	US$19.01
14	Coupling 408-447-580 More Info >	US$45.61
16	Hose Retainer RH 417-448-020 More Info >	Price on Request
17	Clamp 408-448-030 More Info >	Price on Request
19	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	US$1.64
20	Washer - Spring 308-080-043 More Info >	US$0.29
21	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
35	Nut - Plain 107-112-013 More Info >	Price on Request
