NOTES:

Part #	Number on image	Usage Notes
401-000-025	11	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
414-000-076	15	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
414-000-092	16	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
412-000-286	18	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
412-000-287	19	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
404-320-122	22	Roller Scraper available as an option

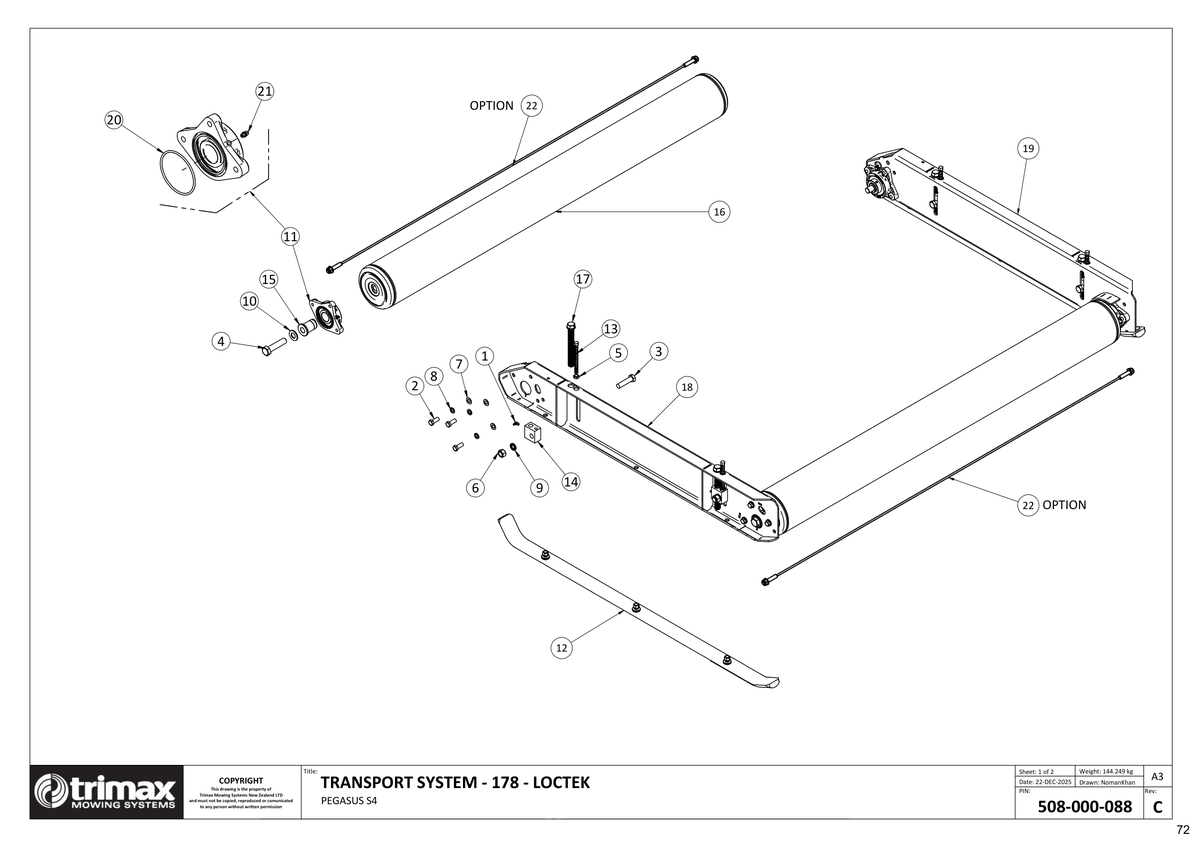

TRANSPORT SYSTEM - 178 - LOCTEK

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	US$4.76
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	US$5.20
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	US$8.00
5	Nut - Half 307-212-023 More Info >	US$0.80
6	Nut - Plain 307-216-013 More Info >	US$1.05
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
10	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
11	Roller Bearing Assembly - TriBolt - Trimax Specification i See notes section for usage notes on this part 401-000-025 More Info >	US$183.00
12	Skid Assembly - Anti-Bounce 412-000-148 More Info >	US$185.94
13	Height Indicator - Metric 412-000-256 More Info >	US$19.91
14	Height Adjuster Block 412-000-279 More Info >	US$53.50
15	Roller Stub Sleeve - LocTek - i See notes section for usage notes on this part 414-000-076 More Info >	US$35.06
16	Roller Weldment - Loctek 178 i See notes section for usage notes on this part 414-000-092 More Info >	US$648.13
17	Height Adjuster Rod - RapidSet 450-000-126 More Info >	US$33.59
18	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-286 More Info >	US$448.77
19	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-287 More Info >	US$448.77
20	O Ring 450-000-055 More Info >	US$2.70
21	Grease Nipple - Trimax Specification 208-442-620 More Info >	US$4.02
22	Scraper - Roller Scraper Kit - 178cm i See notes section for usage notes on this part 404-320-122 More Info >	US$100.94
