NOTES:

Part # Number on image Usage Notes
401-020-802 10
  • Available as kit P/N 401-020-801 contains (Bearing assembled in Housing with Gasket)
308-120-013 29
  • There are 2 flat washers positioned between each spindle and the mower body (1 on each of the front capscrews) it is important to fit these washers whenever mounting the spindles
418-840-860 53
  • This item is fitted to the Left and Right mower decks only
412-171-700 54
  • This item is fitted to the Left and Right mower decks only
417-153-140 55
  • This item is fitted to the Left and Right mower decks only
410-440-400 58
  • When ordering a replacement Safety Cone you will notice that the cones on the Left and Right hand mower decks have a cut-out for ease of cover fitment. Order these as P/N 410-440-401

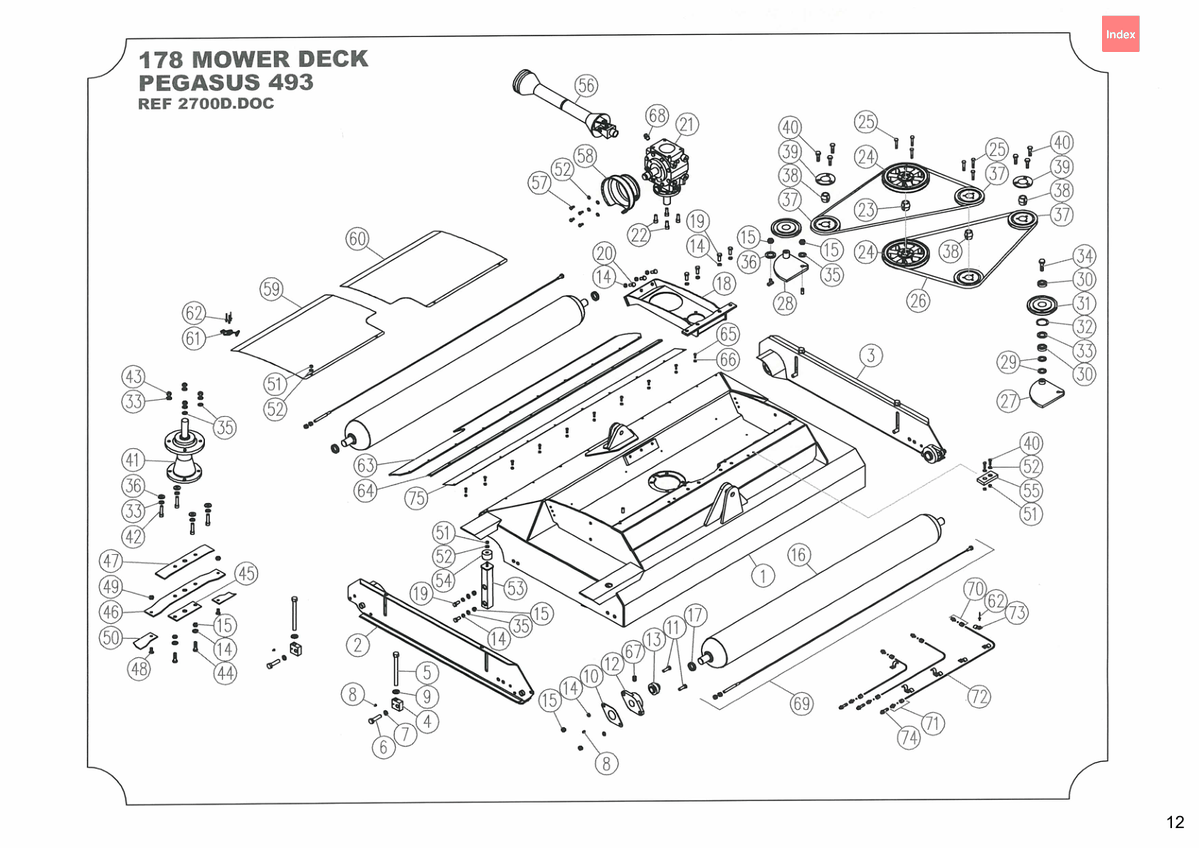

726 - Pegasus S1 - DECK ASSEMBLY

Pegasus S1 493

Grouped product items
No. Image Product Name Price Quantity
2 Side Channel Weldment - DR RH Ext "S" 178 [412-841-000] Side Channel Weldment - DR RH Ext "S" 178 412-841-000
US$426.39
3 Side Channel Weldment - DR LH Ext "S" [412-841-010] Side Channel Weldment - DR LH Ext "S" 412-841-010
US$426.39
4 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
US$26.95
5 Height Adj. Screw [412-850-251] Height Adj. Screw 412-850-251
US$32.80
6 Bolt [301-116-553] Bolt 301-116-553
US$7.29
7 Washer [308-160-043] Washer 308-160-043
US$0.60
8 Grease Nipple [208-442-600] Grease Nipple 208-442-600
US$3.72
9 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
10 Gasket - Paper [401-020-802] Gasket - Paper i See notes section for usage notes on this part 401-020-802
US$4.92
11 Bolt [301-212-353] Bolt 301-212-353
US$2.98
14 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
15 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
18 Gearbox Mount Weldment - Deck Assembly [417-841-500] Gearbox Mount Weldment - Deck Assembly 417-841-500
US$307.50
19 Bolt [301-212-303] Bolt 301-212-303
US$3.13
20 Bolt [301-212-253] Bolt 301-212-253
US$2.26
21 Gearbox [405-200-720] Gearbox 405-200-720
US$1,405.69
22 Cap Screw [303-212-305] Cap Screw 303-212-305
US$1.90
23 Bush [402-060-330] Bush 402-060-330
US$49.11
24 Pulley [403-360-650] Pulley 403-360-650
US$83.35
25 Bolt [301-208-403] Bolt 301-208-403
US$1.64
26 Vee Belt [404-040-750] Vee Belt 404-040-750
US$30.38
27 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
28 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
30 Bearing [401-021-900] Bearing 401-021-900
US$18.52
31 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
32 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
33 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
34 Bolt [301-212-503] Bolt 301-212-503
US$3.87
29 Washer - Flat [308-120-013] Washer - Flat i See notes section for usage notes on this part 308-120-013
US$0.45
36 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
37 Pulley [403-360-300] Pulley 403-360-300
US$63.88
38 Bush [402-060-320] Bush 402-060-320
US$27.23
39 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
40 Bolt [301-208-203] Bolt 301-208-203
US$1.05
42 Cap Screw [303-212-505] Cap Screw 303-212-505
US$2.82
44 Bolt [301-212-453] Bolt 301-212-453
US$3.72
45 Clamp Plate - Blade Beam [411-322-800] Clamp Plate - Blade Beam 411-322-800
US$9.97
46 Beam - Std - Blade Mounting [411-322-750] Beam - Std - Blade Mounting 411-322-750
US$37.63
47 Backing Plate - Blade Beam [411-322-700] Backing Plate - Blade Beam 411-322-700
US$16.85
48 Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting [411-322-100] Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting 411-322-100
US$3.98
49 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
50 Blade - Spindle - Uplift [411-160-702] Blade - Spindle - Uplift 411-160-702
US$5.74
51 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
52 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
53 Buffer Tower Weldment [418-840-860] Buffer Tower Weldment i See notes section for usage notes on this part 418-840-860
US$77.49
54 Buffer - Round [412-171-700] Buffer - Round i See notes section for usage notes on this part 412-171-700
US$21.15
55 Pad [417-153-140] Pad i See notes section for usage notes on this part 417-153-140
US$36.66
57 Bolt [301-208-163] Bolt 301-208-163
US$1.05
58 Cone [410-440-400] Cone i See notes section for usage notes on this part 410-440-400
US$25.22
61 Adjustable Catch - Covers [423-080-220] Adjustable Catch - Covers 423-080-220
US$25.50
62 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
63 Flap [410-841-100] Flap 410-841-100
US$159.90
63 Safety Flap - Deck - Rear 178 [410-841-120] Safety Flap - Deck - Rear 178 410-841-120
US$172.20
64 Clamp Strip - Safety Flap 178 [410-841-200] Clamp Strip - Safety Flap 178 410-841-200
US$82.39
65 Bolt [301-206-203] Bolt 301-206-203
US$0.12
66 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
67 Grub Screw [144-104-025] Grub Screw 144-104-025
US$2.53
68 Breather - Gearbox [405-207-207] Breather - Gearbox 405-207-207
US$21.66
69 Scraper - Roller 178 [404-320-122] Scraper - Roller 178 404-320-122
US$100.94
70 Nipple [450-900-035] Nipple 450-900-035
US$10.21
71 Adaptor - Brass Fitting [450-900-037] Adaptor - Brass Fitting 450-900-037
US$8.85
72 Tube - Grease Line No. 11 ��3/16"OD [903-007-031] Tube - Grease Line No. 11 ��3/16"OD 903-007-031
US$566.31
73 Clip - Grease Line ��4.5 [450-000-031] Clip - Grease Line ��4.5 450-000-031
US$2.09
74 Grease Nipple [208-442-610] Grease Nipple 208-442-610
US$5.51
79 Decal - Instruction - Wash Warning Large [424-101-100] Decal - Instruction - Wash Warning Large 424-101-100
US$3.69
