NOTES:

Part # Number on image Usage Notes
414-320-005 2
  • Machines with serial numbers PCD558, PCD682, PCD738, PCD741, PCD743, PCD745, PCD746, PCD748, PCD749, PCD750, PCD751, PCD780, PCD782 and PCD783 use a taper sleeve bearing (old P/N 2070/USA bearing with old P/N 2092 30mm tapered sleeve) and the roller has 30mm stub axles - this must be specified when re-ordering. An optional sausage type roller is available by adding the suffix S to the old standard part number.
401-020-701 6
  • Machines with serial numbers PCD558, PCD682, PCD738, PCD741, PCD743, PCD745, PCD746, PCD748, PCD749, PCD750, PCD751, PCD780, PCD782 and PCD783 use a taper sleeve bearing (old P/N 2070/USA bearing with old P/N 2092 30mm tapered sleeve) and the roller has 30mm stub axles - this must be specified when re-ordering. An optional sausage type roller is available by adding the suffix S to the old standard part number.
412-331-310 12
  • For serial numbers PC578 onwards, use [412-331-310] Side Channel - 16mm Height Adjuster. For serial numbers PC577 and earlier, use [412-331-270] Side Channel - 12mm Height Adjuster.
301-216-553 13
  • For serial numbers PC578 onwards, use [301-216-553] Bolt - M16 x 55 ZP. For serial numbers PC577 and earlier, use [301-216-453] Bolt - M16 x 45 ZP.
412-330-273 15
  • Fitted from serial number PC578 onwards (16mm height adjuster). For serial numbers PC577 and earlier, use [412-330-272] Height Adjuster - 12mm (item 17).
405-200-720 20
  • The part number listed is for the latest gearbox only. Prior to serial number PCD354 a T4A gearbox was used (old P/N 20070), and from serial number PCD354 to PCD567 a T304A was used (old P/N 20071). Always supply serial number when ordering gearbox parts.
402-060-680 24
  • For serial numbers PCD354 onwards, use [402-060-680] Taper-Lock Bush - G/Box (used with key [405-425-940]). For serial numbers PCD353 and earlier, use [402-060-250] Bi-Loc Bush - G/Box (quantity 1 on 178 and 210, quantity 2 on 237 to 300).
403-361-270 25
  • For serial numbers PCD354 onwards, use [403-361-270] G/Box Pulley - 200 (quantity 1). For serial numbers PCD353 and earlier, use [403-360-800] G/Box Pulley - 200 (quantity 4). Offset machines use [403-361-270] (quantity 1).
308-120-013 28
  • Quantity as required.
403-360-110 31
  • Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-423 35
  • Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-424 36
  • Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-432 37
  • Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-442 38
  • Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
404-041-030 40
  • Optional alternative: SPBX2650. Not all optional belts are available off the shelf. Offset machines (282 OS): A-B and B-C [404-040-830] (quantity 2), D [404-041-300].
404-040-480 41
  • Optional alternatives: SPBX1260, 5VX500. Not all optional belts are available off the shelf.
404-040-530 42
  • Optional alternative: SPBX1400. Not all optional belts are available off the shelf.
404-041-010 43
  • Not all optional belts are available off the shelf.
504-328-010 48
  • OFFSET ONLY. On Procut Offset machines the extreme right hand spindle (when standing behind the mower) is a special short version (old P/N 32801S). All other spindles are standard.
423-080-220 59
  • For serial numbers PCD579 onwards, use [423-080-220] Cover Latch - Adjustable. For serial numbers PCD578 and earlier, use [423-080-200] Cover Latch.

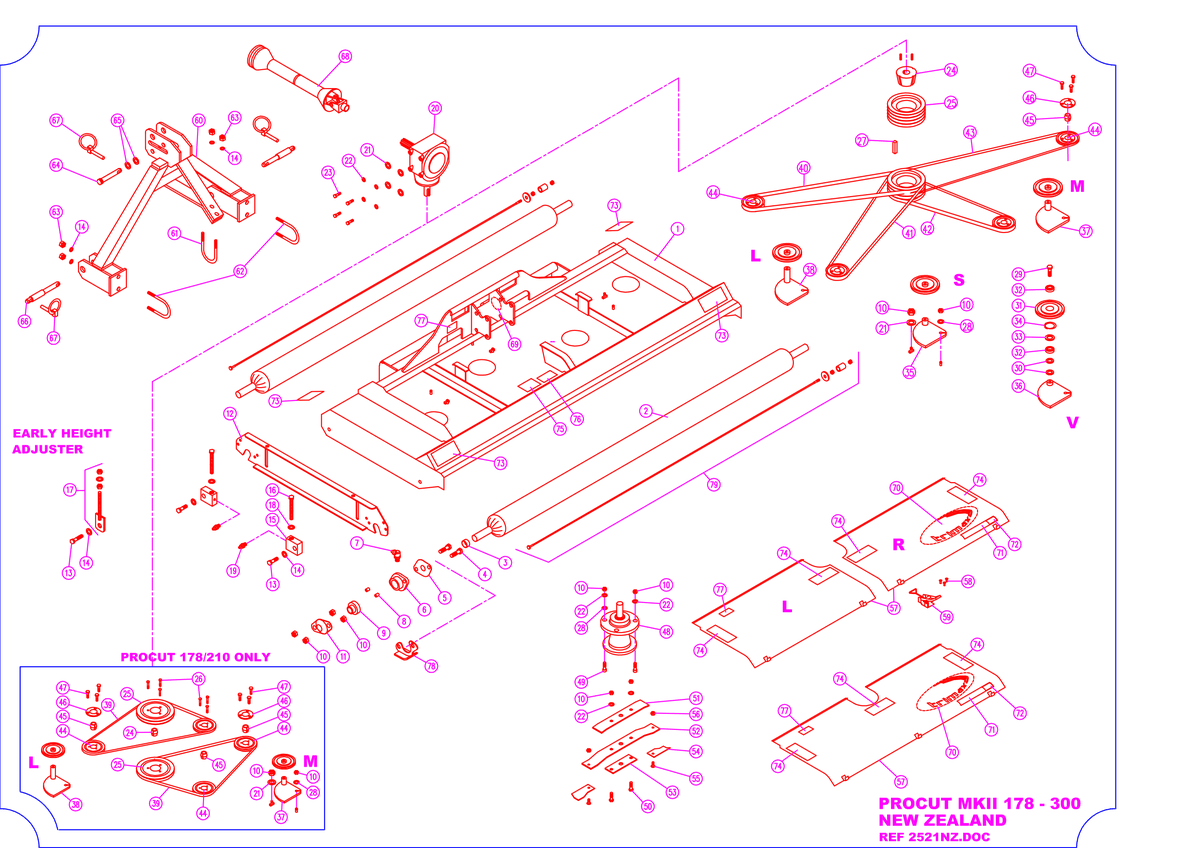

735 - Procut Mk2 282 - Complete Assembly

ProCut Mk2 282

Grouped product items
No. Image Product Name Price Quantity
2 Roller Weldment 282 [414-320-005] Roller Weldment 282 i See notes section for usage notes on this part 414-320-005
US$338.25
3 Sleeve [402-464-062] Sleeve 402-464-062
US$7.13
4 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
US$3.87
5 Shield [410-464-052] Shield 410-464-052
US$14.40
6 Roller Bearing Assembly - Trimax Specification [401-020-701] Roller Bearing Assembly - Trimax Specification i See notes section for usage notes on this part 401-020-701
US$63.00
7 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
8 Sleeve [402-480-740] Sleeve 402-480-740
US$1.72
10 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
11 Cap [410-464-072] Cap 410-464-072
US$24.48
12 Side Channel Weldment - DR 210/282/300 PC2 [412-331-310] Side Channel Weldment - DR 210/282/300 PC2 i See notes section for usage notes on this part 412-331-310
US$220.93
13 Bolt - Hex Head - M16 x 55 - Trimax Specification [301-216-553] Bolt - Hex Head - M16 x 55 - Trimax Specification i See notes section for usage notes on this part 301-216-553
US$10.87
14 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
15 Height Adjuster Block [412-330-273] Height Adjuster Block i See notes section for usage notes on this part 412-330-273
US$26.95
18 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
19 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
20 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720
US$1,405.69
21 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
22 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
23 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
24 Bush - Taper Lock [402-060-680] Bush - Taper Lock i See notes section for usage notes on this part 402-060-680
US$87.26
25 Pulley - Taper Lock [403-361-270] Pulley - Taper Lock i See notes section for usage notes on this part 403-361-270
US$240.93
27 Key [405-425-940] Key 405-425-940
US$3.28
28 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - i See notes section for usage notes on this part 308-120-013
US$0.45
31 Pulley - Idler [403-360-110] Pulley - Idler i See notes section for usage notes on this part 403-360-110
US$41.94
32 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
33 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
34 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
35 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base i See notes section for usage notes on this part 403-330-423
US$62.65
36 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base i See notes section for usage notes on this part 403-330-424
US$60.30
37 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base i See notes section for usage notes on this part 403-330-432
US$62.73
38 Idler Tower Incl Base [403-330-442] Idler Tower Incl Base i See notes section for usage notes on this part 403-330-442
US$63.96
40 Vee Belt - Trimax Specification [404-041-030] Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-041-030
US$69.12
41 Vee Belt - Trimax Specification [404-040-480] Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-480
US$32.35
42 Vee Belt - Trimax Specification [404-040-530] Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-530
US$41.23
43 Vee Belt - Trimax Specification [404-041-010] Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-041-010
US$69.12
44 Pulley [403-360-300] Pulley 403-360-300
US$63.88
45 Bush [402-060-320] Bush 402-060-320
US$27.23
46 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
47 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
48 Spindle Assembly - Type 5b Std [504-328-010] Spindle Assembly - Type 5b Std i See notes section for usage notes on this part 504-328-010
US$688.79
49 Cap Screw - Socket Head - M12 x 50 - Trimax Specification [303-212-505] Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505
US$2.82
50 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
51 Backing Plate - Blade Beam [411-322-710] Backing Plate - Blade Beam 411-322-710
US$18.94
52 Beam - Std - Blade Mounting [411-322-760] Beam - Std - Blade Mounting 411-322-760
US$39.53
53 Clamp Plate - Blade Beam [411-322-800] Clamp Plate - Blade Beam 411-322-800
US$9.97
54 Blade - Fling-Tip Blade - Classic (16070/U) [411-160-702] Blade - Fling-Tip Blade - Classic (16070/U) 411-160-702
US$5.74
55 Blade Bolt - D-Bolt With M10 Nyloc Nut - Classic Blade Mounting [411-322-100] Blade Bolt - D-Bolt With M10 Nyloc Nut - Classic Blade Mounting 411-322-100
US$3.98
56 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
58 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
59 Adjustable Catch - Covers [423-080-220] Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220
US$25.50
61 U-Bolt [215-446-340] U-Bolt 215-446-340
US$23.67
62 U-Bolt [215-446-320] U-Bolt 215-446-320
US$24.56
63 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
64 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
65 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
66 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
67 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
68 PTO Complete Driveshaft - 540/1000rpm - Trimax Specification [406-340-840] PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840
US$461.24
70 Decal [424-100-350] Decal 424-100-350
Price on Request
73 Decal - Safety - Blade Warning / Thrown Objects [424-100-950] Decal - Safety - Blade Warning / Thrown Objects 424-100-950
US$4.10
75 Decal - Instruction - Wash Warning Large [424-101-100] Decal - Instruction - Wash Warning Large 424-101-100
US$3.69
77 Decal - Instruction - PTO Speed 540RPM [424-100-900] Decal - Instruction - PTO Speed 540RPM 424-100-900
US$6.06
