NOTES:

Part #	Number on image	Usage Notes
401-020-701	6	Machines with serial numbers PCD558, PCD682, PCD738, PCD741, PCD743, PCD745, PCD746, PCD748, PCD749, PCD750, PCD751, PCD780, PCD782 and PCD783 use a taper sleeve bearing (old P/N 2070/USA bearing with old P/N 2092 30mm tapered sleeve) and the roller has 30mm stub axles - this must be specified when re-ordering. An optional sausage type roller is available by adding the suffix S to the old standard part number.
412-331-310	12	For serial numbers PC578 onwards, use [412-331-310] Side Channel - 16mm Height Adjuster. For serial numbers PC577 and earlier, use [412-331-270] Side Channel - 12mm Height Adjuster.
301-216-553	13	For serial numbers PC578 onwards, use [301-216-553] Bolt - M16 x 55 ZP. For serial numbers PC577 and earlier, use [301-216-453] Bolt - M16 x 45 ZP.
412-330-273	15	Fitted from serial number PC578 onwards (16mm height adjuster). For serial numbers PC577 and earlier, use [412-330-272] Height Adjuster - 12mm (item 17).
405-200-720	20	The part number listed is for the latest gearbox only. Prior to serial number PCD354 a T4A gearbox was used (old P/N 20070), and from serial number PCD354 to PCD567 a T304A was used (old P/N 20071). Always supply serial number when ordering gearbox parts.
402-060-680	24	For serial numbers PCD354 onwards, use [402-060-680] Taper-Lock Bush - G/Box (used with key [405-425-940]). For serial numbers PCD353 and earlier, use [402-060-250] Bi-Loc Bush - G/Box (quantity 1 on 178 and 210, quantity 2 on 237 to 300).
308-120-013	28	Quantity as required.
403-360-110	31	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-423	35	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-424	36	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-432	37	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
403-330-442	38	Part numbers listed are for double bearing idlers only. It is recommended that old style single bearing idler parts are replaced with new double bearing parts. Old parts are still available on request. Offset machines use three idler assemblies (Very Short, Medium and Long).
404-041-140	40	For serial numbers PCD611 onwards, use [404-041-140] Vee Belt - A Spindle. For serial numbers PCD599 to PCD610, use [404-041-160]. For serial numbers PCD402 to PCD598, use [404-041-160]. For serial numbers PCD401 and earlier, use [404-041-100] (optional: SPBX2840, 5VX1120). Not all optional belts are available off the shelf.
404-040-550	41	For serial numbers PCD599 onwards, use [404-040-550] Vee Belt - B Spindle. For serial numbers PCD402 to PCD598, use [404-040-560]. For serial numbers PCD401 and earlier, use [404-040-500] (optional: SPBX1340, 5VX530). Not all optional belts are available off the shelf.
404-040-610	42	For serial numbers PCD402 onwards, use [404-040-610] Vee Belt - C Spindle (optional: SPBX1600, 5VX630). For serial numbers PCD401 and earlier, use [404-040-540] (optional: SPBX1410, 5VX560). Not all optional belts are available off the shelf.
404-041-160	43	For serial numbers PCD599 onwards, use [404-041-160] Vee Belt - D Spindle (optional: SPBX3000, 5VX1180). For serial numbers PCD402 to PCD598, use [404-041-160]. For serial numbers PCD401 and earlier, use [404-041-080] (optional: SPBX2800). Not all optional belts are available off the shelf.
403-360-600	44	Prior to serial number PCD402, the 3.00m used the 140mm spindle pulley (old P/N 36030).
504-328-010	48	OFFSET ONLY. On Procut Offset machines the extreme right hand spindle (when standing behind the mower) is a special short version (old P/N 32801S). All other spindles are standard.
423-080-220	59	For serial numbers PCD579 onwards, use [423-080-220] Cover Latch - Adjustable. For serial numbers PCD578 and earlier, use [423-080-200] Cover Latch.

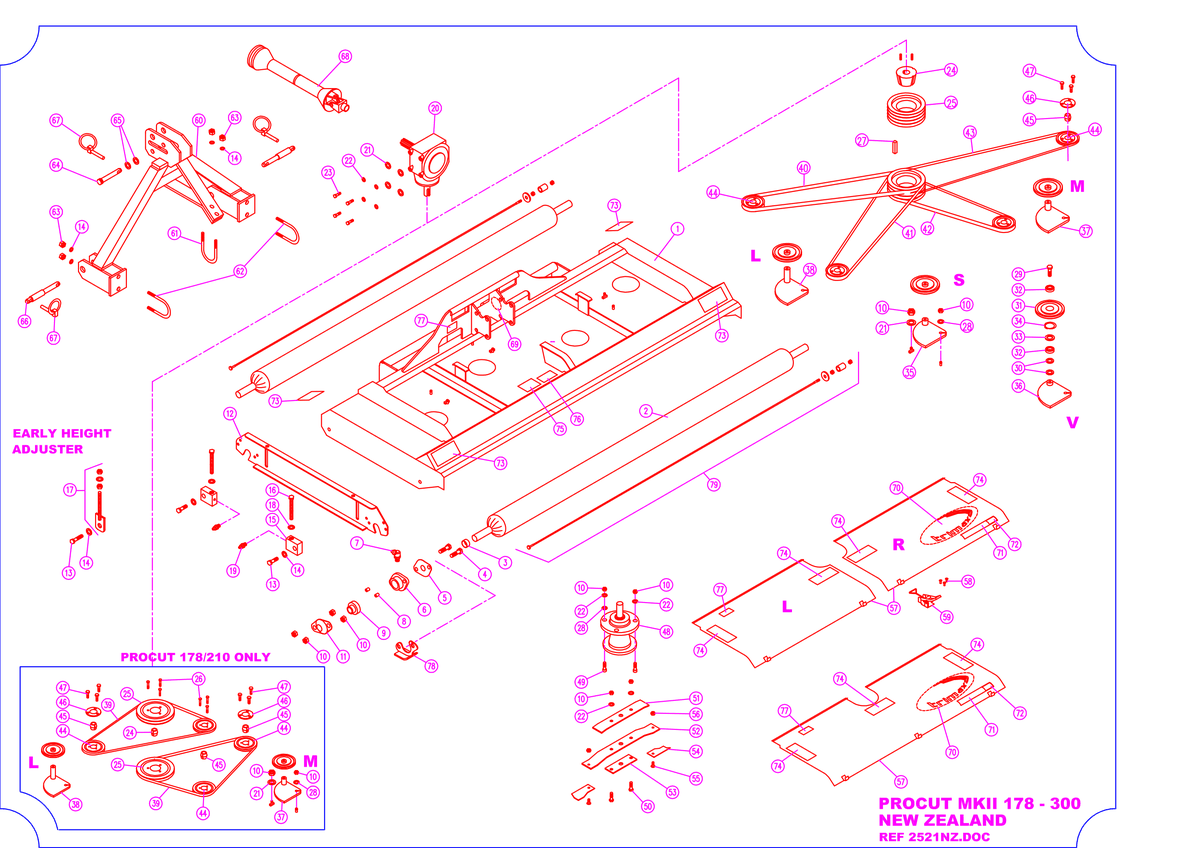

735 - Procut Mk2 300 - Complete Assembly

ProCut Mk2 300

Grouped product items
No.	Product Name	Price
3	Sleeve 402-464-062 More Info >	US$7.13
4	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	US$3.87
5	Shield 410-464-052 More Info >	US$14.40
6	Roller Bearing Assembly - Trimax Specification i See notes section for usage notes on this part 401-020-701 More Info >	US$63.00
7	Grease Nipple - Trimax Specification 208-442-620 More Info >	US$4.02
8	Sleeve 402-480-740 More Info >	US$1.72
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
11	Cap 410-464-072 More Info >	US$24.48
12	Side Channel Weldment - DR 210/282/300 PC2 i See notes section for usage notes on this part 412-331-310 More Info >	US$220.93
13	Bolt - Hex Head - M16 x 55 - Trimax Specification i See notes section for usage notes on this part 301-216-553 More Info >	US$10.87
14	Washer - Spring 308-160-043 More Info >	US$0.60
15	Height Adjuster Block i See notes section for usage notes on this part 412-330-273 More Info >	US$26.95
18	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
19	Grease Nipple - Trimax Specification 208-442-600 More Info >	US$3.72
20	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	US$1,405.69
21	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
22	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
23	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
24	Bush - Taper Lock i See notes section for usage notes on this part 402-060-680 More Info >	US$87.26
27	Key 405-425-940 More Info >	US$3.28
28	Washer - Flat M12 - Trimax Specification - i See notes section for usage notes on this part 308-120-013 More Info >	US$0.45
31	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	US$41.94
32	Bearing - Trimax Specification - 401-021-900 More Info >	US$22.00
33	Washer - Flat 108-071-413 More Info >	US$2.53
34	Circlip/Snap Ring - Internal 204-820-371 More Info >	US$3.13
35	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-423 More Info >	US$62.65
36	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-424 More Info >	US$60.30
37	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-432 More Info >	US$62.73
38	Idler Tower Incl Base i See notes section for usage notes on this part 403-330-442 More Info >	US$63.96
40	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-041-140 More Info >	US$52.66
41	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-550 More Info >	US$37.49
42	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-610 More Info >	US$40.89
43	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-041-160 More Info >	US$74.97
44	Pulley i See notes section for usage notes on this part 403-360-600 More Info >	US$249.26
45	Bush 402-060-320 More Info >	US$27.23
46	Retainer Ring 402-060-450 More Info >	US$10.81
47	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	US$1.05
48	Spindle Assembly - Type 5b Std i See notes section for usage notes on this part 504-328-010 More Info >	US$688.79
49	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	US$2.82
50	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	US$3.72
51	Backing Plate - Blade Beam 411-322-690 More Info >	US$46.62
52	Beam - Std - Blade Mounting 411-322-740 More Info >	US$55.64
53	Clamp Plate - Blade Beam 411-322-800 More Info >	US$9.97
54	Blade - Fling-Tip Blade - Classic (16070/U) 411-160-702 More Info >	US$5.74
55	Blade Bolt - D-Bolt With M10 Nyloc Nut - Classic Blade Mounting 411-322-100 More Info >	US$3.98
56	Nut - Nyloc 307-210-053 More Info >	US$0.60
58	Blind Rivet 213-443-250 More Info >	US$0.60
59	Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220 More Info >	US$25.50
61	U-Bolt 215-446-340 More Info >	US$23.67
62	U-Bolt 215-446-320 More Info >	US$24.56
63	Nut - Plain 307-216-013 More Info >	US$1.05
64	Pin - Linkage - Top Link 419-301-150 More Info >	US$13.68
65	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
66	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	US$25.34
67	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	US$2.23
68	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	US$461.24
70	Decal 424-100-350 More Info >	Price on Request
73	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	US$4.10
75	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	US$3.69
77	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	US$6.06
