NOTES:

Part # Number on image Usage Notes
403-361-270 6
  • For serial numbers PCD353 and earlier, use [403-360-800] Gearbox Pully x4.
402-060-680 7
  • For serial numbers PCD353 and earlier, use [402-060-250] Gearbox Pully Bush x2.
405-425-940 9
  • Only use on serial numbers PCD354 and later.

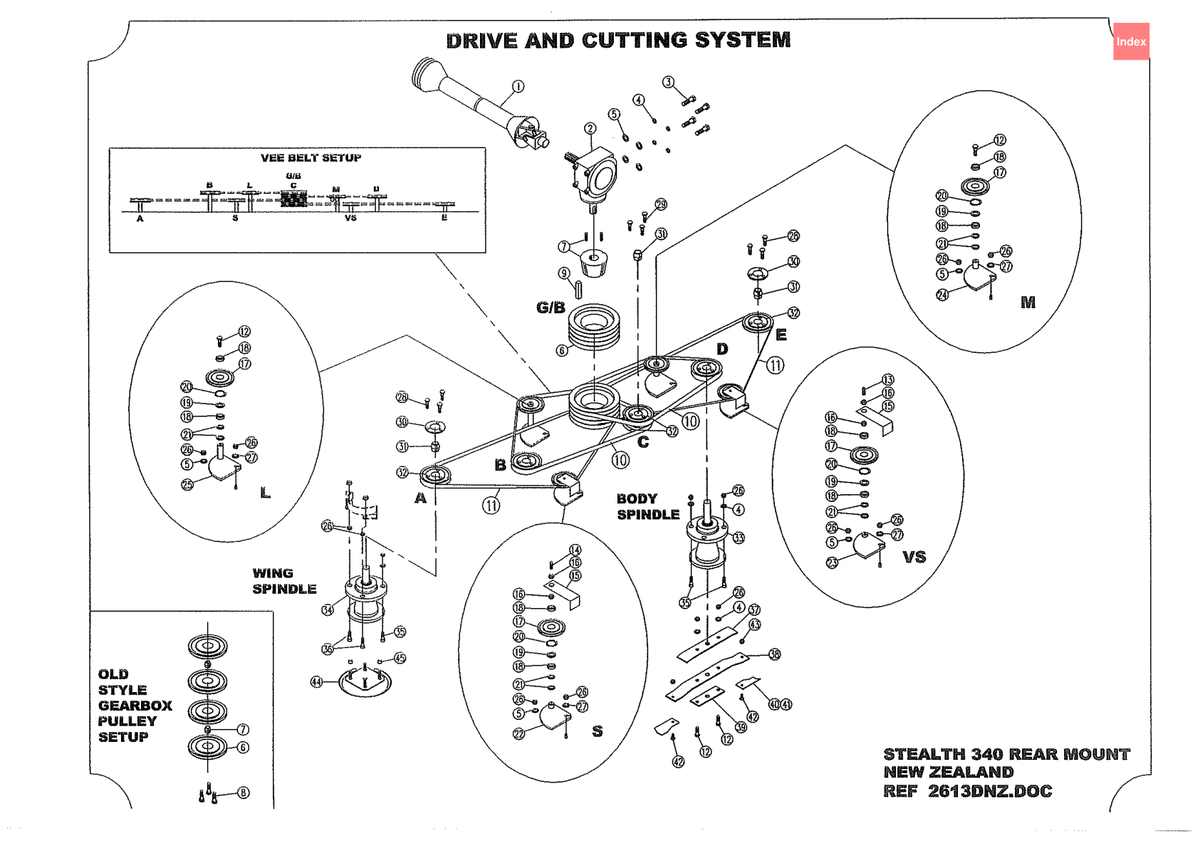

Stealth S1 - Drive & Cutting System

Stealth S1 340

Grouped product items
No. Image Product Name Price Quantity
1 Driveshaft [406-340-840] Driveshaft 406-340-840
US$461.24
2 Gearbox [405-200-720] Gearbox 405-200-720
US$1,405.69
3 Bolt [301-212-303] Bolt 301-212-303
US$3.13
4 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
5 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
6 Pulley [403-361-270] Pulley i See notes section for usage notes on this part 403-361-270
US$240.93
7 Bush - Taper Lock [402-060-680] Bush - Taper Lock i See notes section for usage notes on this part 402-060-680
US$87.26
9 Key [405-425-940] Key i See notes section for usage notes on this part 405-425-940
US$3.28
10 Vee Belt [404-040-830] Vee Belt 404-040-830
US$51.54
11 Vee Belt [404-041-300] Vee Belt 404-041-300
US$84.34
12 Bolt [301-212-453] Bolt 301-212-453
US$3.72
14 Stud [403-330-443] Stud 403-330-443
US$2.27
16 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
17 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
18 Bearing [401-021-900] Bearing 401-021-900
US$18.52
19 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
21 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
22 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
23 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base 403-330-424
US$60.30
24 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
25 Idler Tower Incl Base [403-330-442] Idler Tower Incl Base 403-330-442
US$63.96
26 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
28 Bolt [301-208-203] Bolt 301-208-203
US$1.05
29 Bolt [301-208-403] Bolt 301-208-403
US$1.64
30 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
31 Bush [402-060-320] Bush 402-060-320
US$27.23
32 Pulley [403-360-300] Pulley 403-360-300
US$63.88
33 Spindle Assembly - Type 5b Ext 50mm [504-328-013] Spindle Assembly - Type 5b Ext 50mm 504-328-013
US$434.59
35 Cap Screw [303-212-505] Cap Screw 303-212-505
US$2.82
36 Bolt [301-212-553] Bolt 301-212-553
US$1.07
37 Backing Plate - Blade Beam [411-322-710] Backing Plate - Blade Beam 411-322-710
US$18.94
38 Beam - Std - Blade Mounting [411-322-760] Beam - Std - Blade Mounting 411-322-760
US$39.53
39 Clamp Plate - Blade Beam [411-322-800] Clamp Plate - Blade Beam 411-322-800
US$9.97
40 Blade - Spindle - Flat [411-160-700] Blade - Spindle - Flat 411-160-700
US$6.91
41 Blade - Spindle - Uplift [411-160-702] Blade - Spindle - Uplift 411-160-702
US$5.74
42 Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting [411-322-100] Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting 411-322-100
US$3.98
43 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
